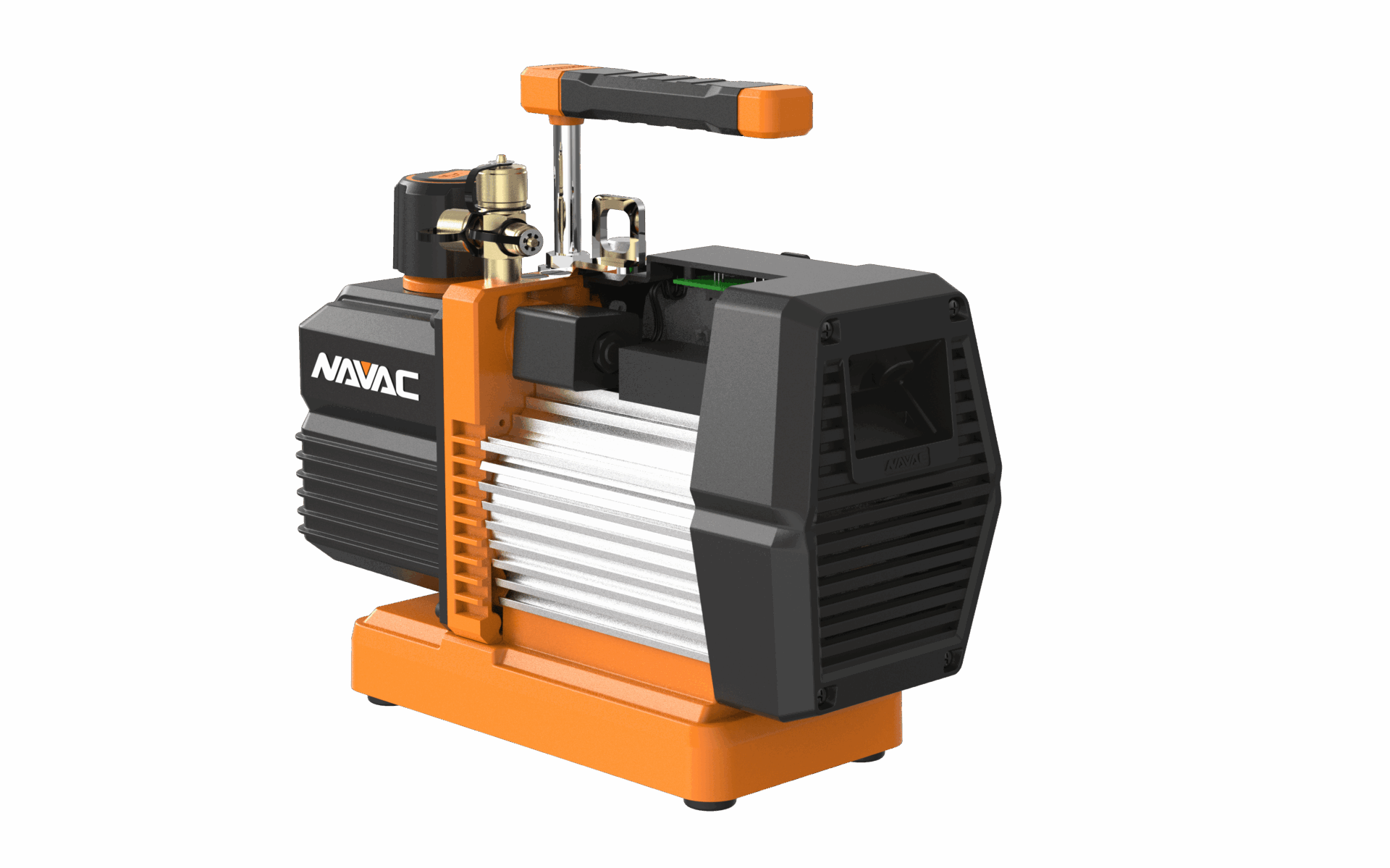

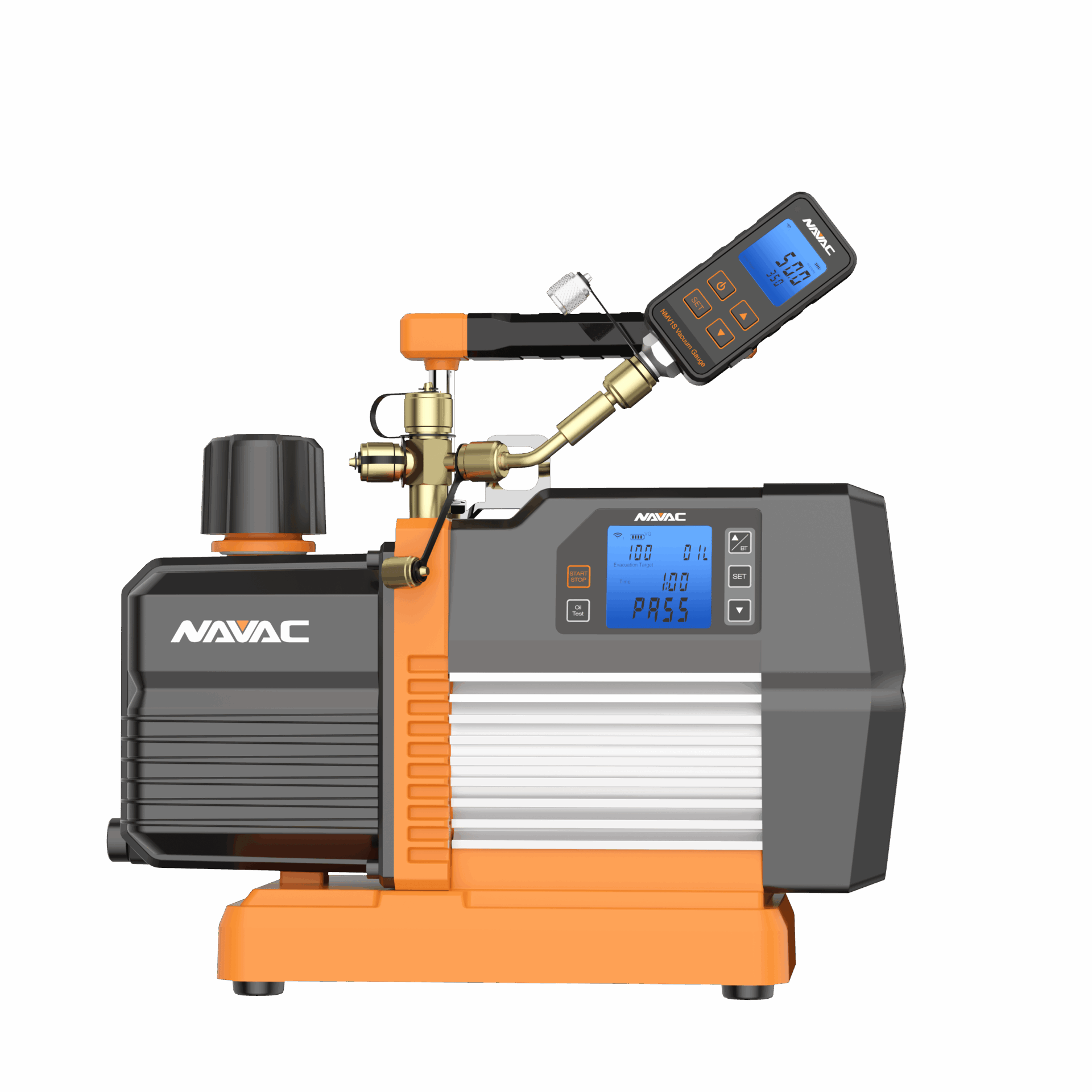

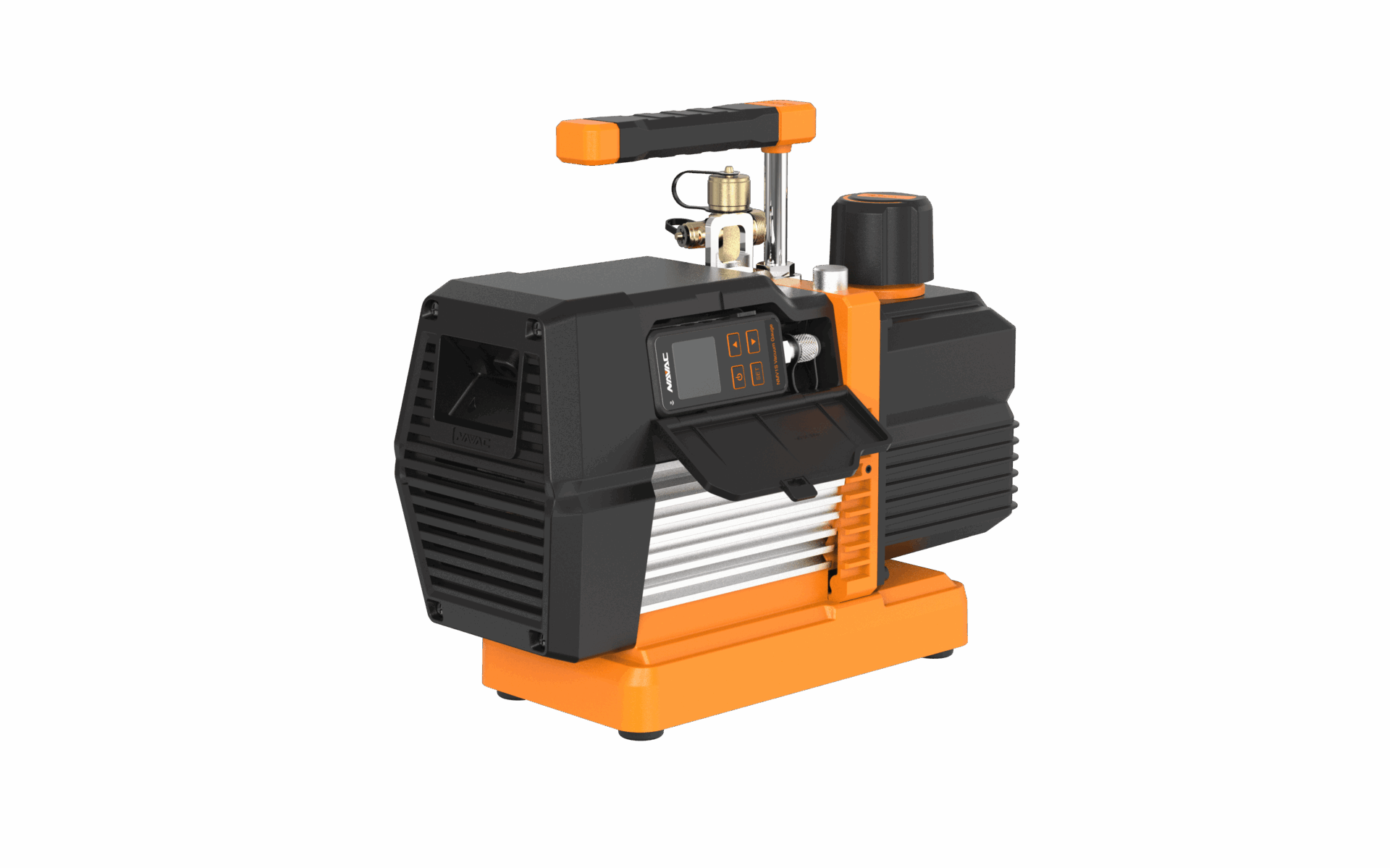

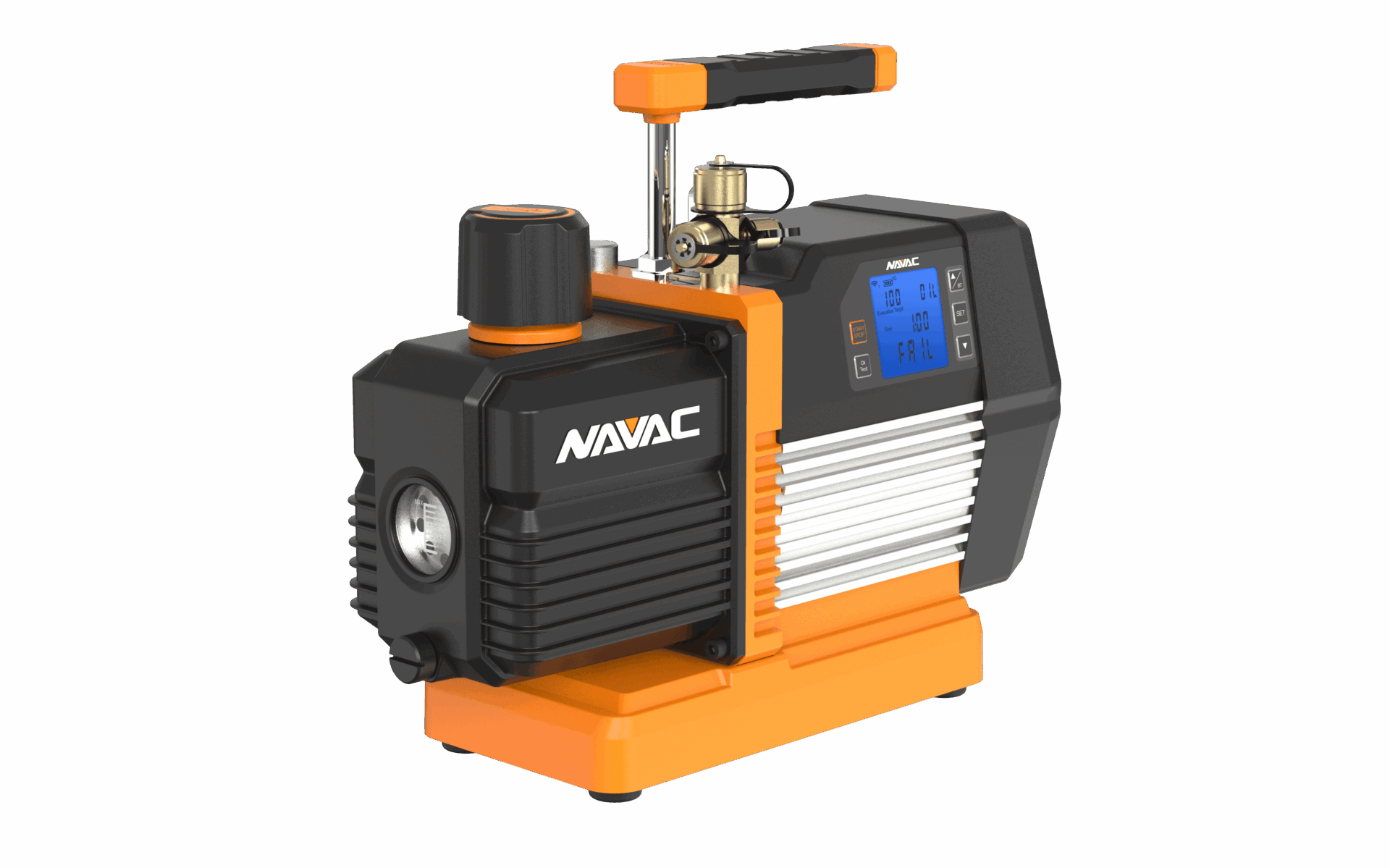

NAVAC introduces the world’s first vacuum pump with oil heath test function, NP8DSV. Designed with professional technicians in mind, it offers a powerful 8 CFM dual-stage performance and an impressive 15-micron ultimate vacuum. The one-click oil health test function allows users to quickly assess oil condition, providing a measurable solution so that oil is only changed when needed. The pump seamlessly integrates with the NMV1S Bluetooth vacuum gauge, providing real-time system vacuum readings displayed on the pump and in myNAVAC App. With user-friendly features like automated decay testing, preset vacuum targets, and a built-in solenoid valve for vacuum preservation, this pump is designed for “set it and forget it” convenience.
Reliable, efficient, and easy to use, the NP8DSV sets a new standard in system evacuation, helping you save time, reduce costs, and deliver precise, effective evacuations every time.
Model | NP8DS/NP8DSV |
---|---|
Power Supply | 115V/60Hz |
Flow Rate | 8 CFM |
Ultimate Vacuum | 15 micron |
Pump Design | Dual-Stage, AC Motor |
Motor Power | 3/4 HP |
Inlet Port | 1/4”, 3/8”, 1/2” Flare |
Oil Capacity | 17.6 oz |
Dimension | 13.95×5.09×11.74 in |
Weight | NP8DS: 28.6 lbs NP8DSV: 29lbs (Vacuum Gauge Included) |
Vacuum Gauge | NP8DS: No Vacuum Gauge NP8DSV: NMV1S Vacuum Gauge |
Warranty | 2 Years |
