Brushless DC Pumps with Smart Control

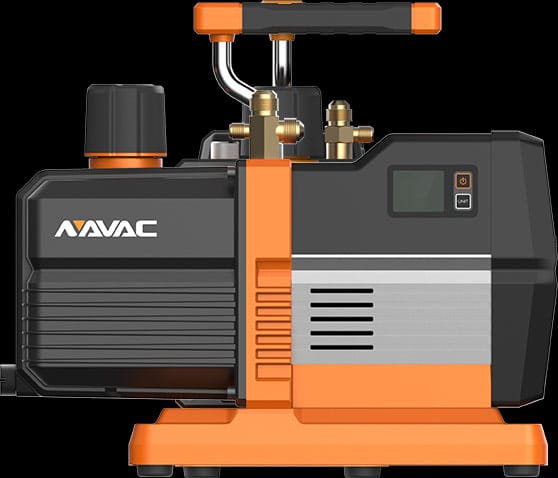

The era of smart refrigerant evacuation begins here with the combination of inverter, vacuum measurement and smart control in one unit. The light-weight, inverter-driven, twin-cylinder vacuum pump delivers high-speed evacuation along with high ultimate vacuum. Vacuum measurement technology precisely measures the system pressure. A digital display provides a comprehensive view of the system’s internal vacuum condition. Smart control assures the system’s vacuum by automatically extending the evacuation time after the system reaches the preset vacuum level. A built-in solenoid valve prevents oil back flow and seals the system to preserve the vacuum during power outage or accidental disconnect. Upon completion of operation, the unit will beep to remind the technician that evacuation is complete, so they can move on to the next job.
Leading Technology, Superior Quality, Best Experience.
Empowering you to work smarter!
| Model | NRP6Di | NRP8Di | |
|---|---|---|---|
| Power Supply | V/Hz | 115V / 60Hz | 115V / 60Hz |
| Flow Rate | CFM | 6 | 8 |
| RLA | A | 5.5 | 6 |
| Ultimate Vacuum | micron | 15 | 15 |
| Pump Design | Dual stage | Dual stage | |
| Motor Power | Hp | 3/4 | 3/4 |
| Inlet Ports | 1/4″, 3/8″,1/2″ Flare | 1/4″, 3/8″, 1/2″ Flare | |
| Oil Capacity | oz | 17.6 | 17.6 |
| Dimensions | in | 14×5.3×11.9 | 14×5.3×11.9 |
| Weight | lbs | 25.35 | 25.35 |
| Warranty | year | 2 | 2 |
Resources
Advanced Tech from the Leading HVAC Tool Manufacturer
Smart Vacuum Pumps for refrigerant evacuation make projects run far more smoothly than with a combination of several traditional tools, enabling technicians to be more productive and companies to be more profitable.
Professional-Grade 3-in-1 HVAC Toolkit
Replacing several older tools with one combination unit offers obvious advantages, and using refrigeration equipment from a trusted name synonymous with the highest standards of quality in HVAC tool manufacturing simply makes good sense. NAVAC’s smart refrigerant vacuum pumps combination an inverter, vacuum measurement and smart control all in a single compact and lightweight unit. The unit’s twin-cylinder vacuum pump has the power to evacuate refrigerant at high speeds, and the system’s digital display ensures that all of the tool’s operations can be closely monitored and executed with precision, and the refrigeration tool’s smart controls enable the system to work semi-autonomously, enabling technicians to be more productive while the system runs.
Comprehensive Digital Measurement and Management
NAVAC’s digital vacuum measurement technology precisely measures and clearly displays the system pressure. The digital display also provides access to a comprehensive view of the system’s internal vacuum condition. Thus, a technician can monitor the system’s precise pressure at all times, and use the display to access all the information they need to know to ensure that the system is running optimally. The smart pump’s controls enable true one-touch operation – after turning the system on, the technician is hands-off until a simple and clear alert notifies them that the process is complete. This capability is best-in-class in the HVAC tool industry and empowers technicians to be more accurate, more efficient, and simply, more satisfied.
HVAC Tools Manufactured with a Unique Devotion to HVAC Technicians
NAVAC’s philosophy is always to begin with considering the needs and requirements of our end users – HVAC technicians themselves. Placing their preferences and best interests at the forefront of our minds, we integrate state-of-the-art technology and the highest possible quality in HVAC tool manufacturing to deliver unique and innovative products that make a tremendous positive impact in the daily work-lives of the technicians who use them.
NAVAC HVAC products provide technicians with a superior experience and contribute to a more relaxed, time-saving, enjoyable work environment. For that reason, companies who invest in supplying NAVAC refrigeration HVAC tools to their technicians can expect to reap benefits including:
- Better & more precise execution of jobs
- More efficient crews accomplishing more profitable jobs
- Improved HVAC technician job satisfaction and retention
- Increased customer satisfaction
NAVAC is proud to be the HVAC tool manufacturer industry’s most forward-thinking innovators and the creators of a new generation of HVACR Smart Tools.
