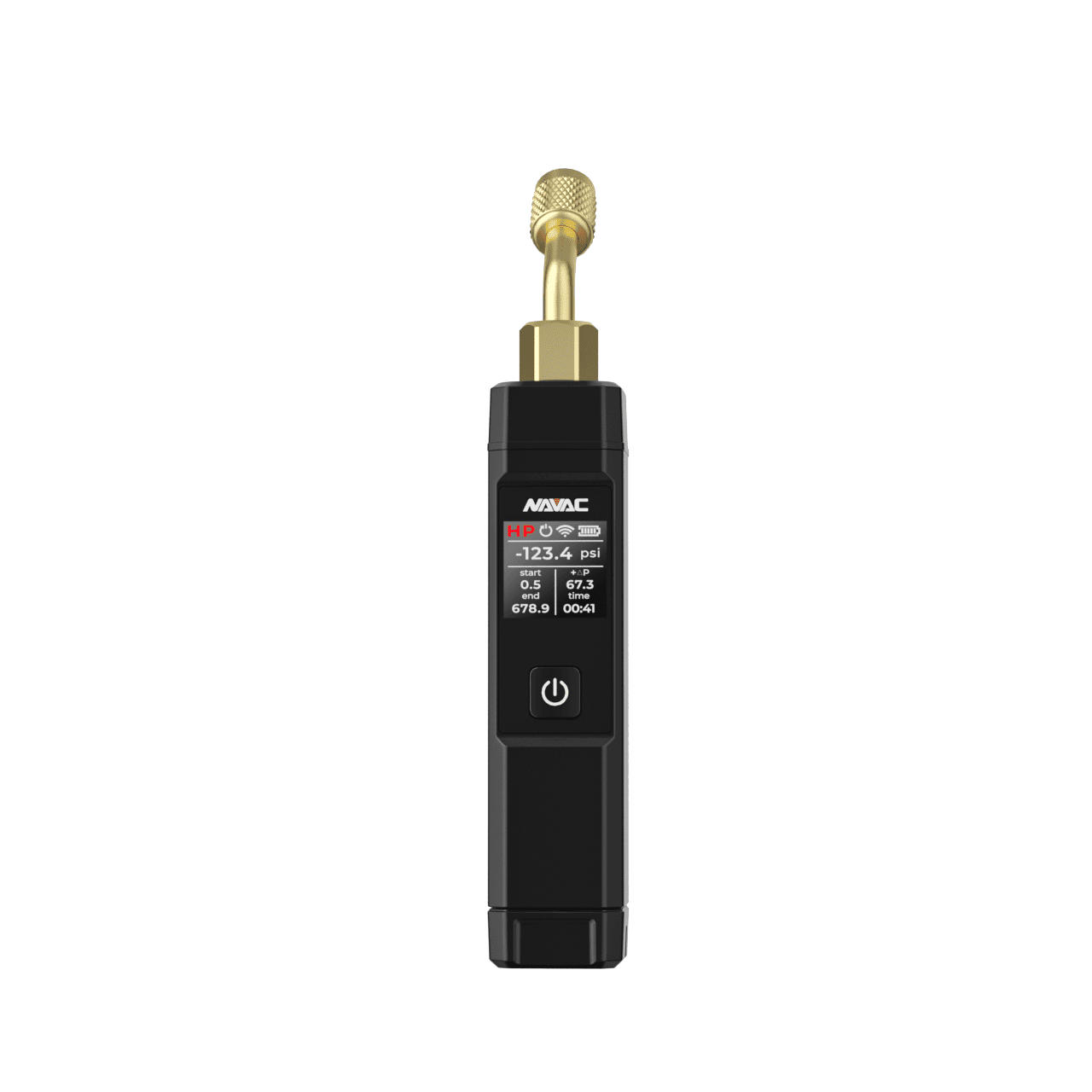

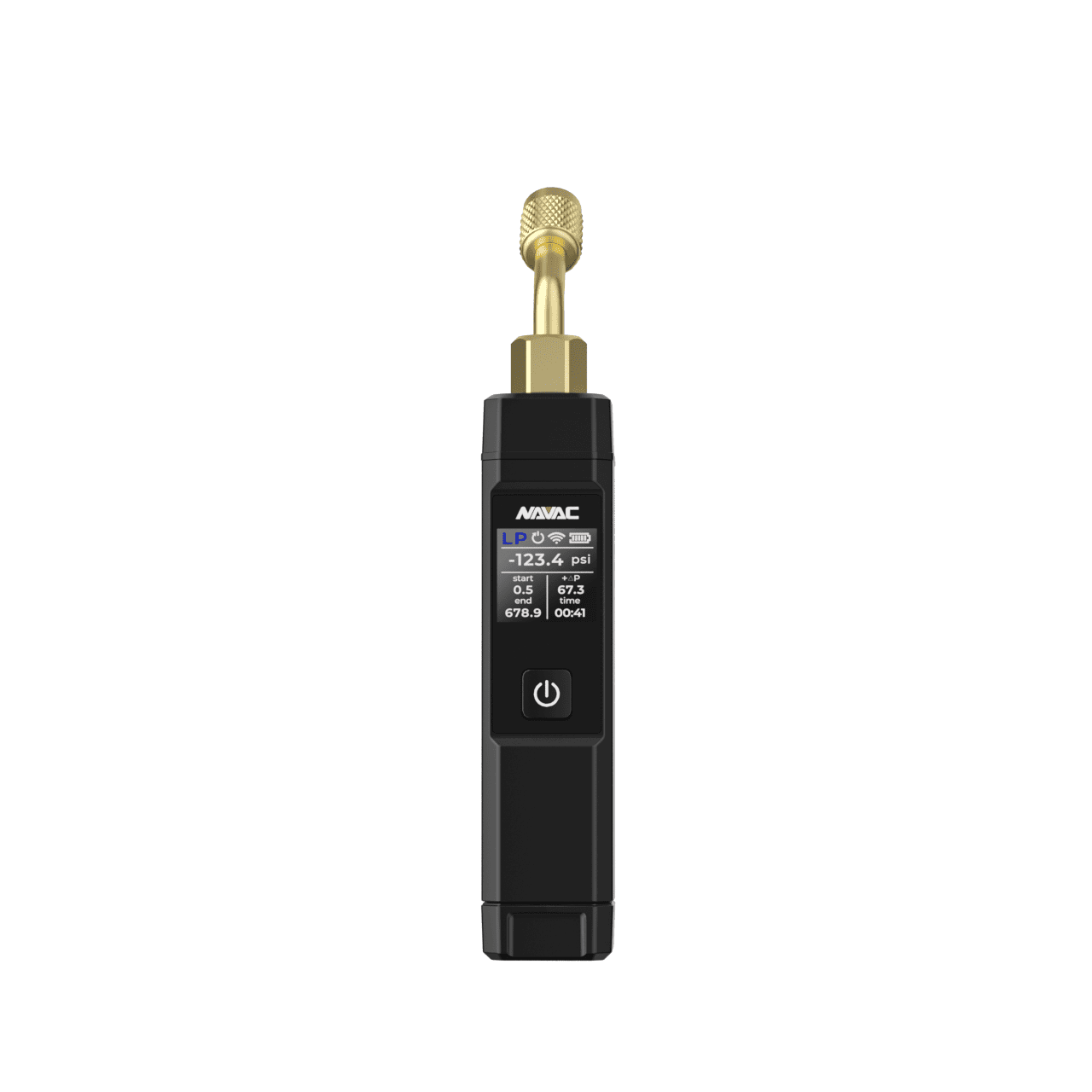

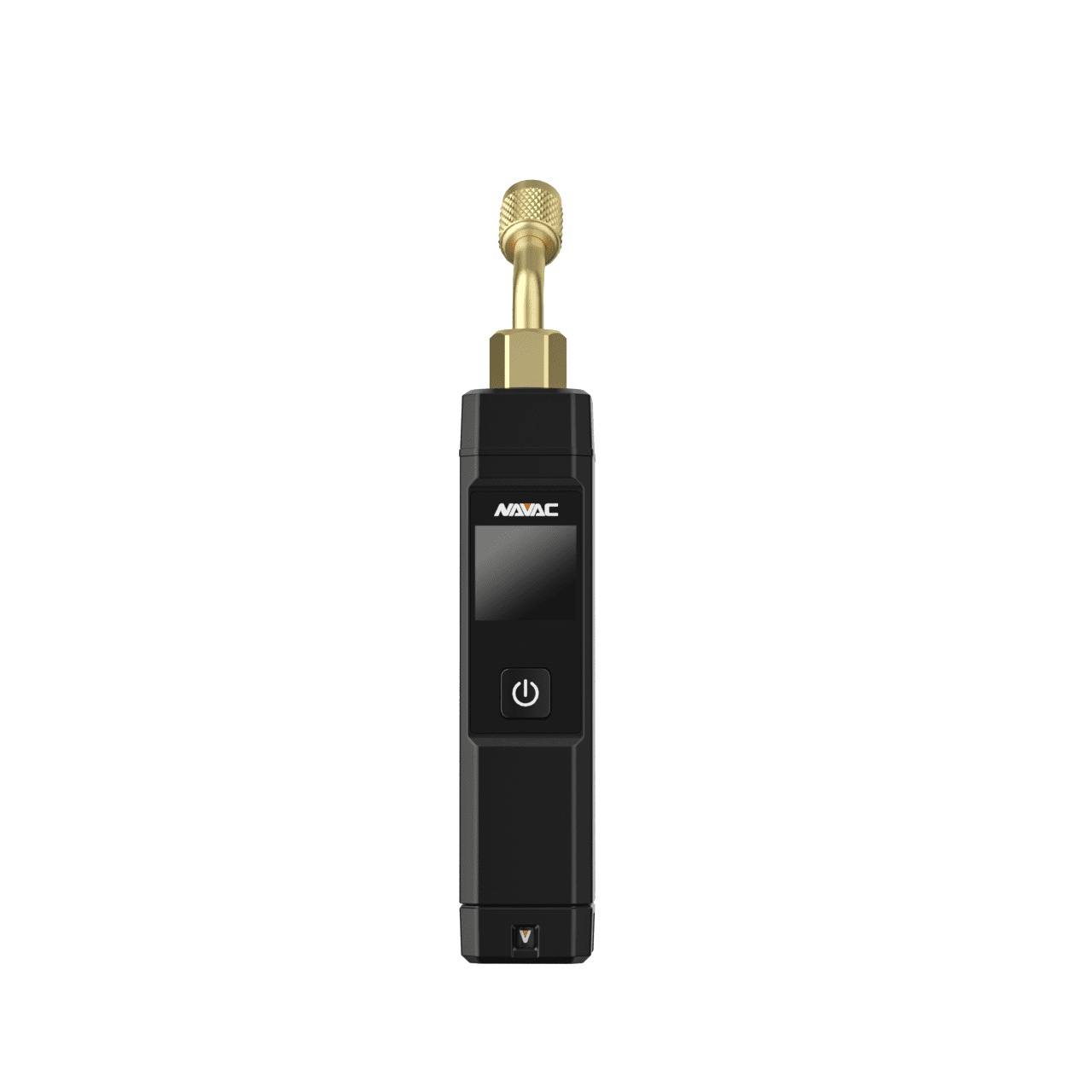

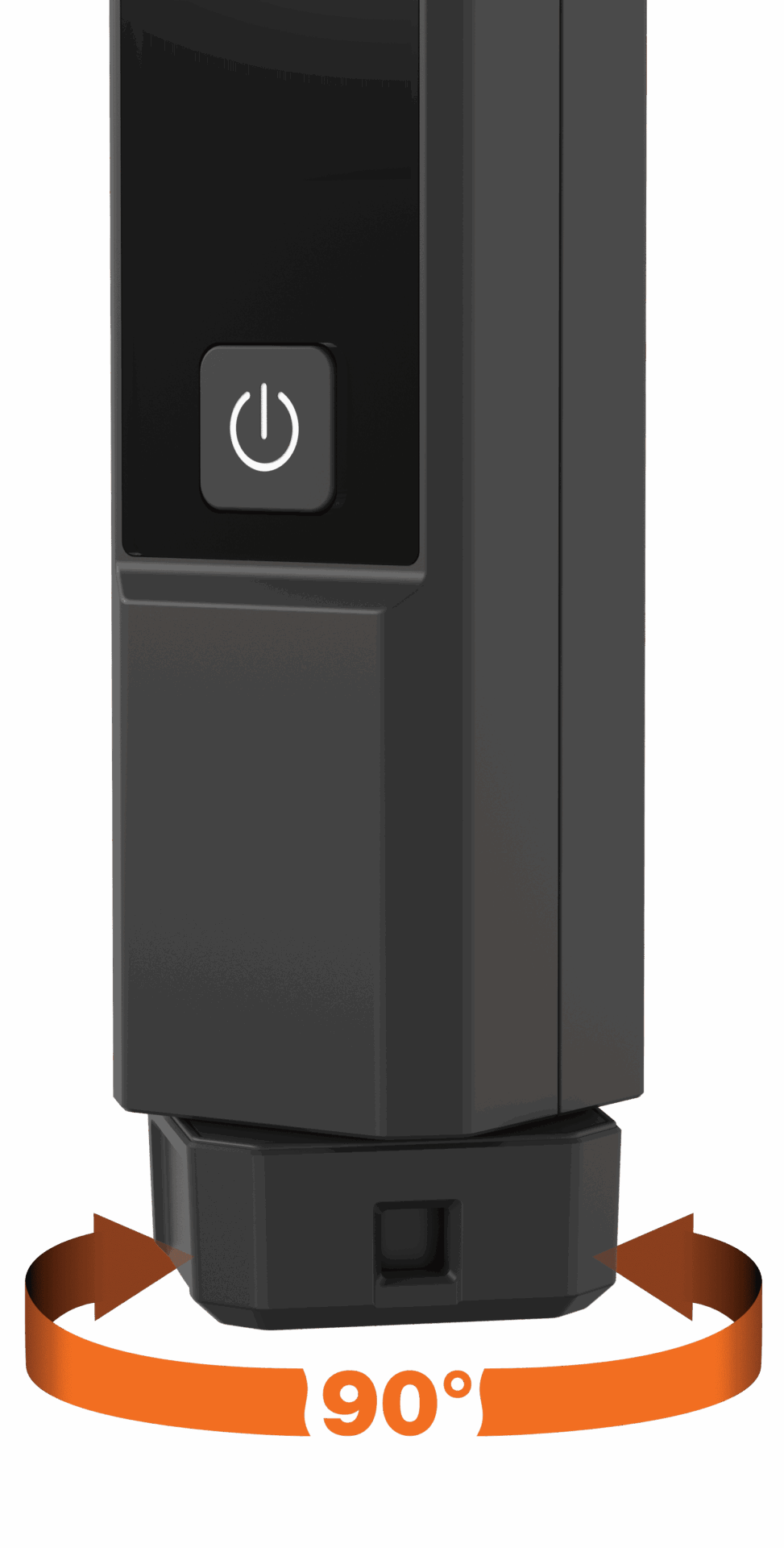

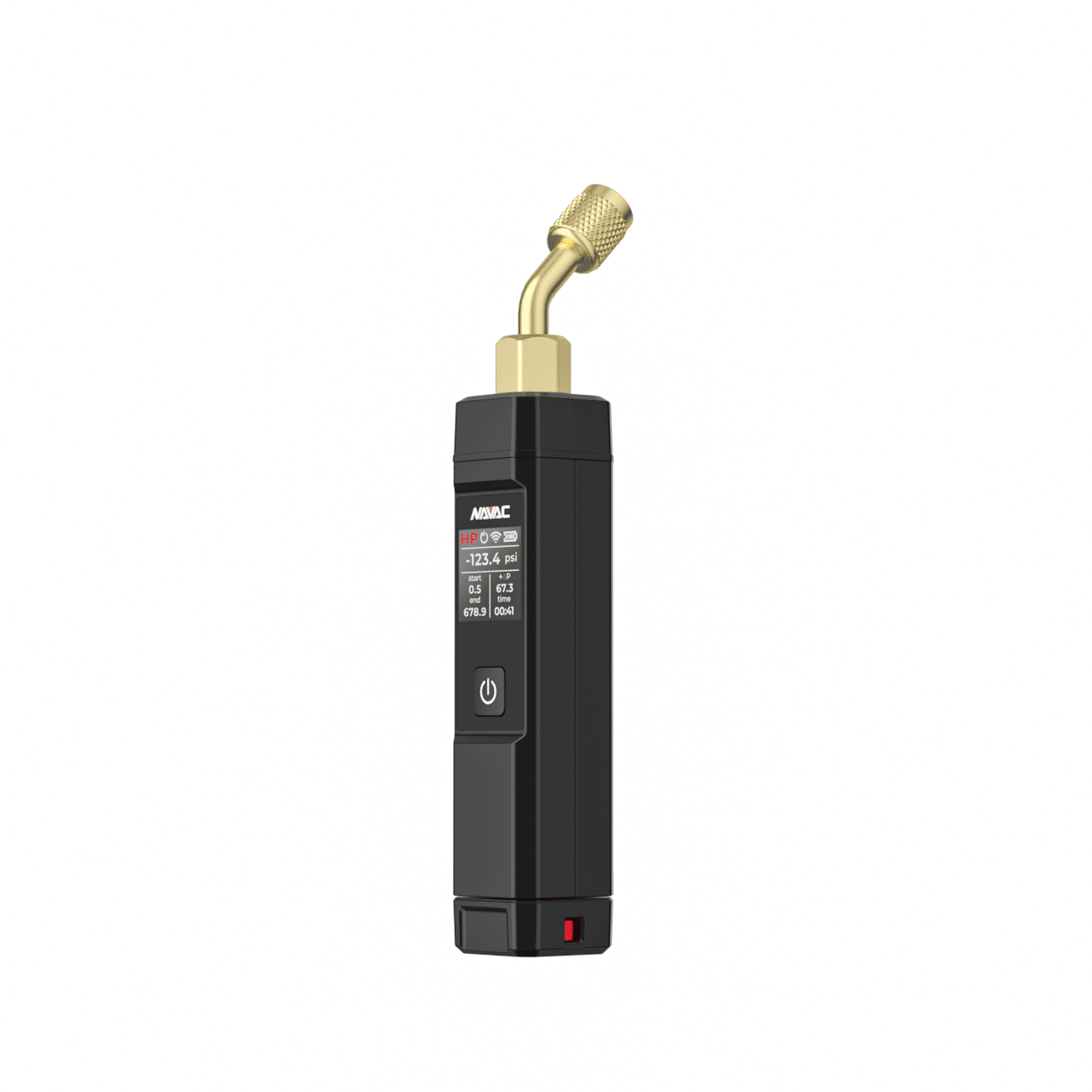

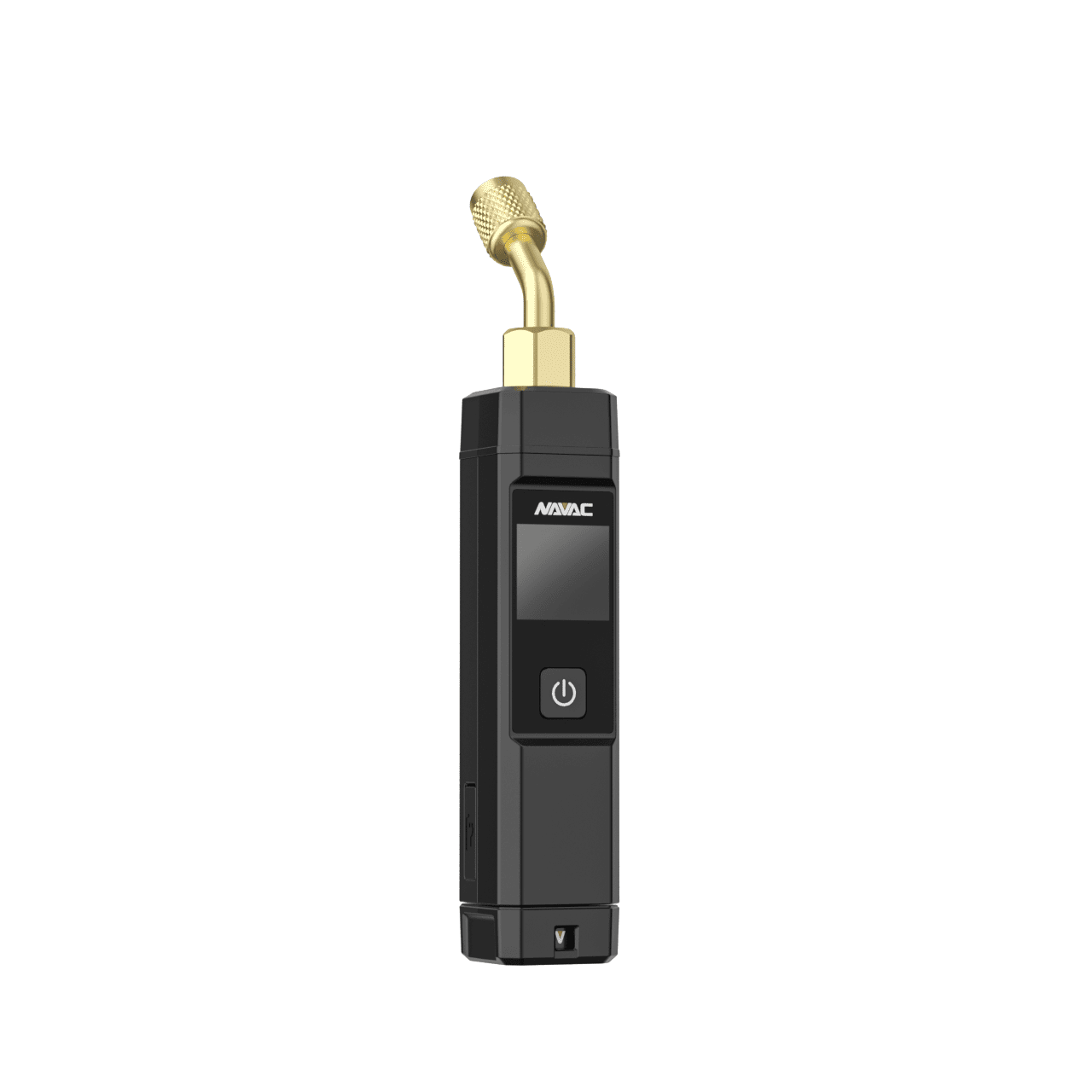

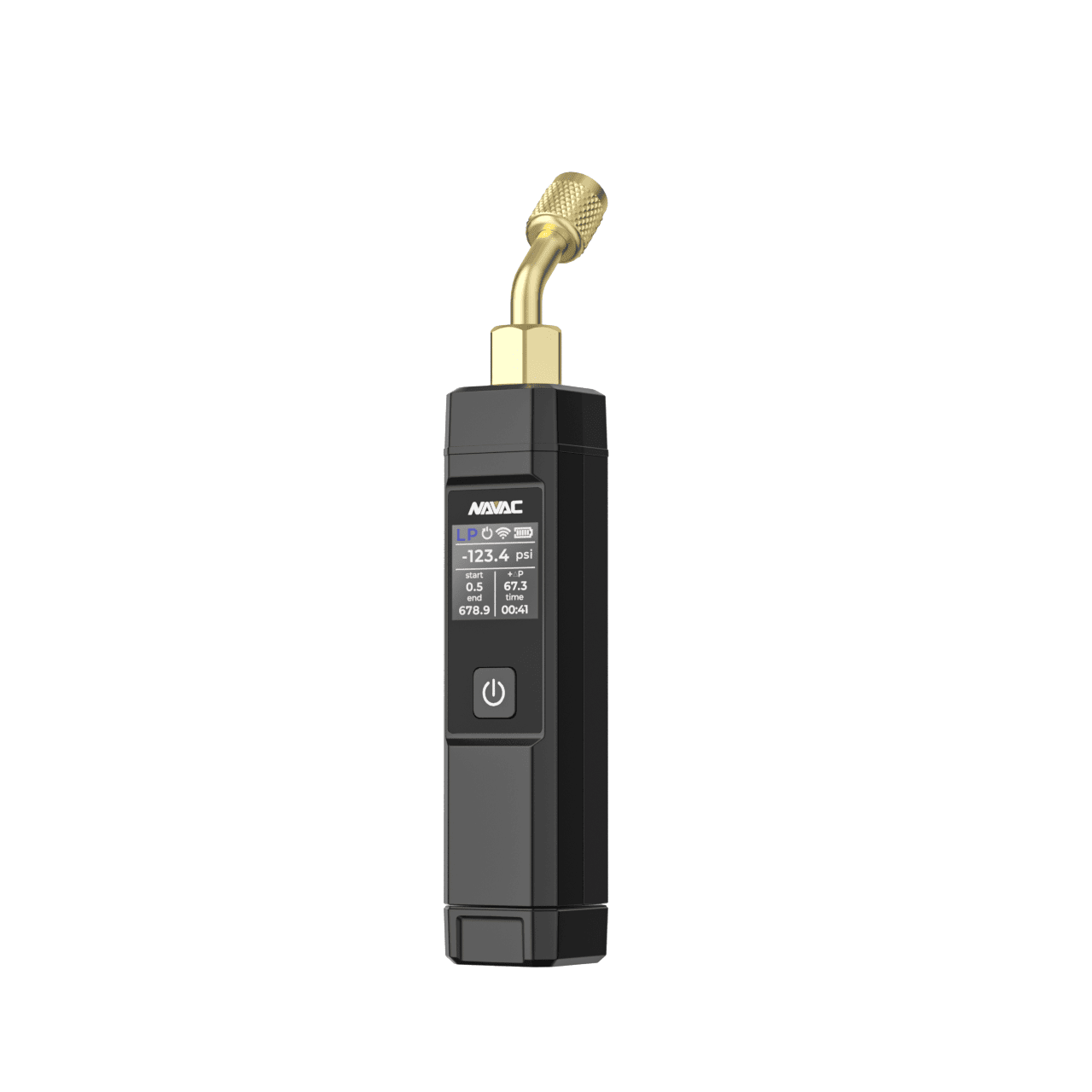

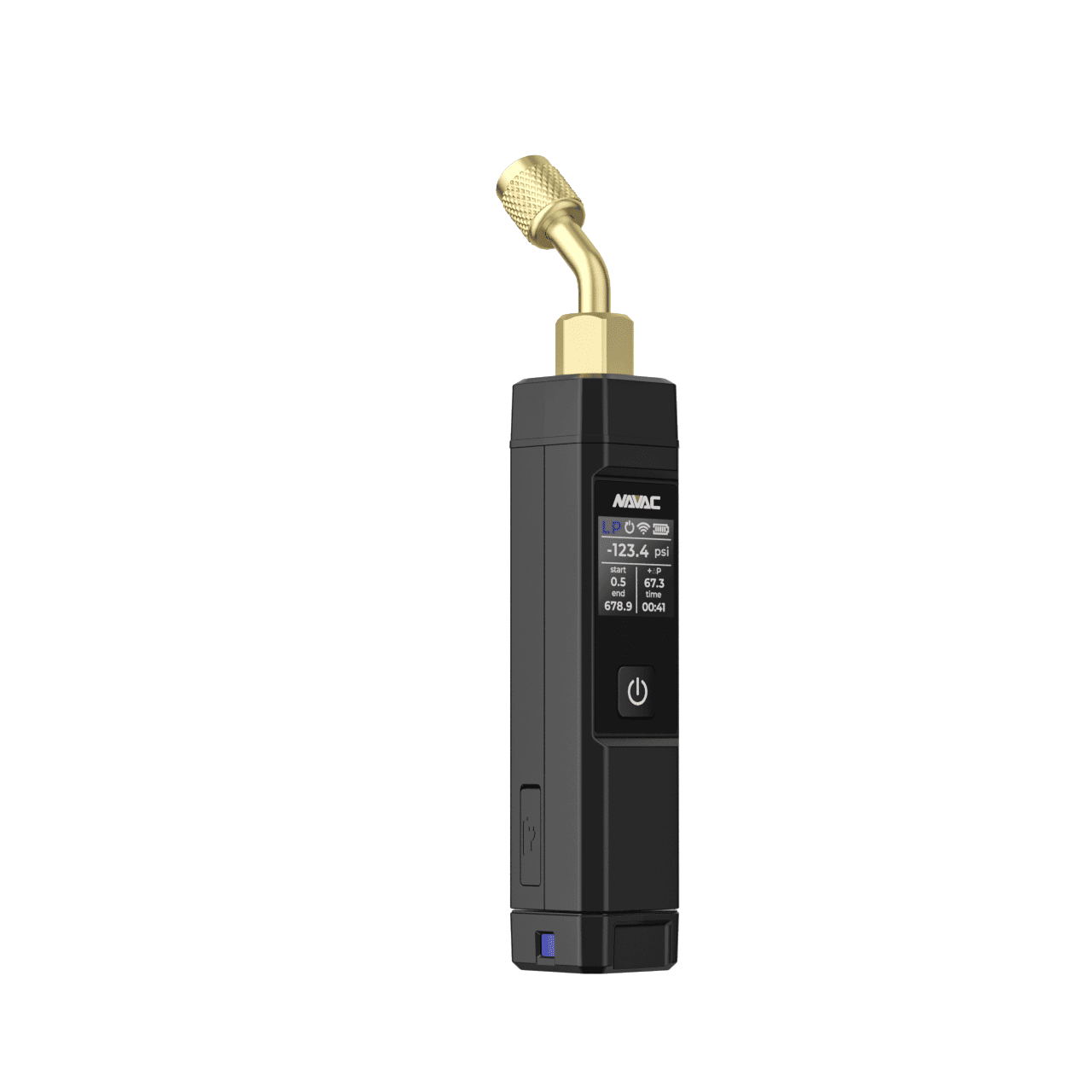

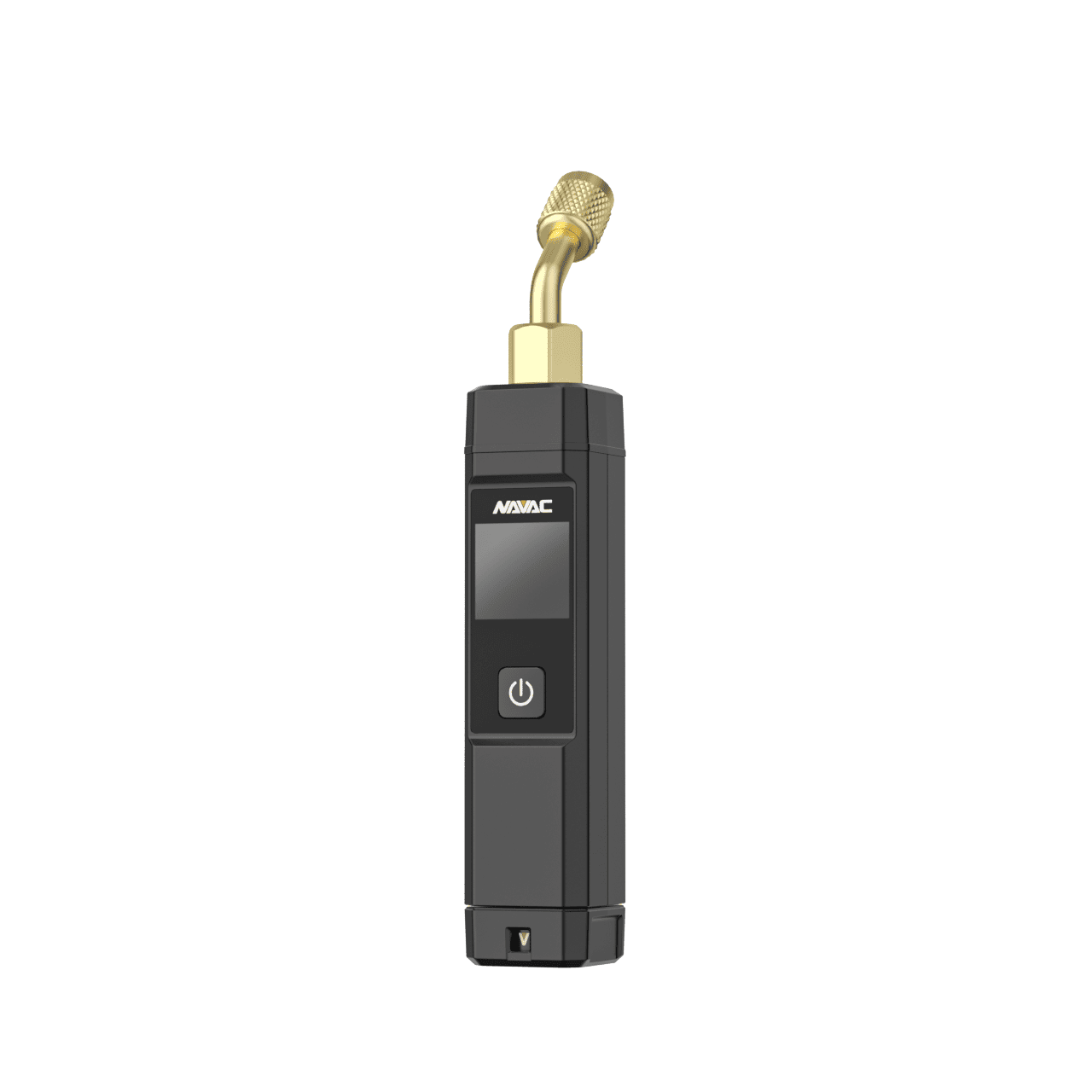

The NSP1 Bluetooth Pressure Probe is a versatile tool for precise pressure measurements in HVAC applications. Compatible with the myNAVAC™ App and A2L refrigerants, it offers the flexibility of wireless connectivity or standalone operation with its large, easy-to-read digital display. The probe features a high-accuracy piezoelectric sensor for quick and reliable readings and a simple one-button operation for ease of use. Smart functions such as VSAT/LSAT calculations on myNAVAC™ App, simultaneous pressure and temperature display, and pressure decay testing through the app enhance diagnostic capabilities. Built for convenience, the NSP1 includes a rechargeable lithium battery with up to 150 hours of life, an auto power-off option, and an easy-to-switch knob for use on high (HP) or low (LP) sides.
Model | NSP1 |
---|---|
Measurement Range | -29.0 inHg to 725 psi |
Maximum Overload Pressure | 1087psi (7500kPa) |
Accuracy | ±0.5% of full range |
Resolution | 0.01 psi |
Sensor Type | Ceramic pressure sensor |
Bluetooth Range | 164ft (50m) |
Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
Unit Weight | 7.6oz (215g) |
Accessory | Carry bag |
Wireless Frequency | 2.4 GHz |
Auto Power Off (APO) | 2 hours (can be disabled) |
Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
Warranty | 1 Year |
