2023 Dealer Design Award Winner!

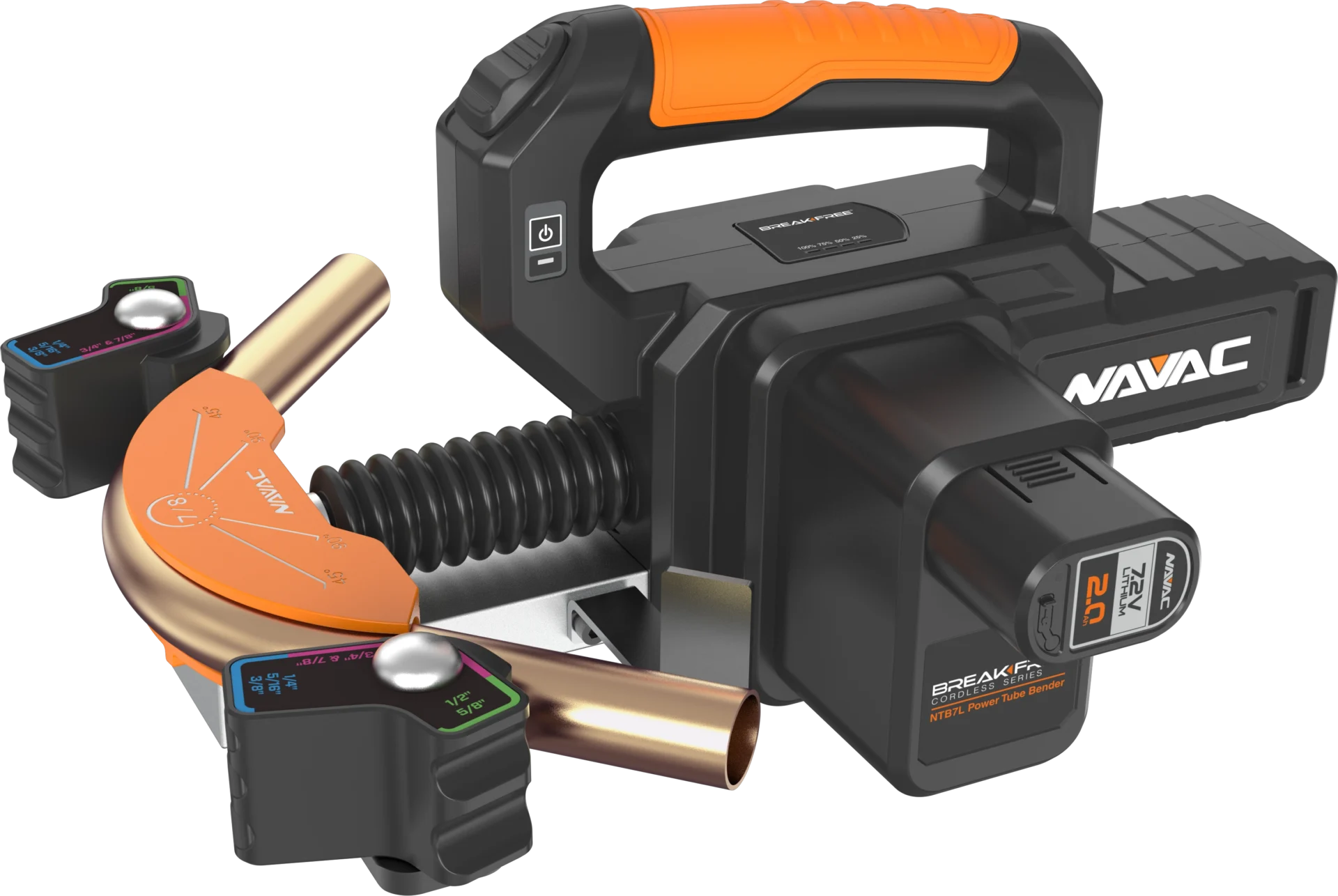

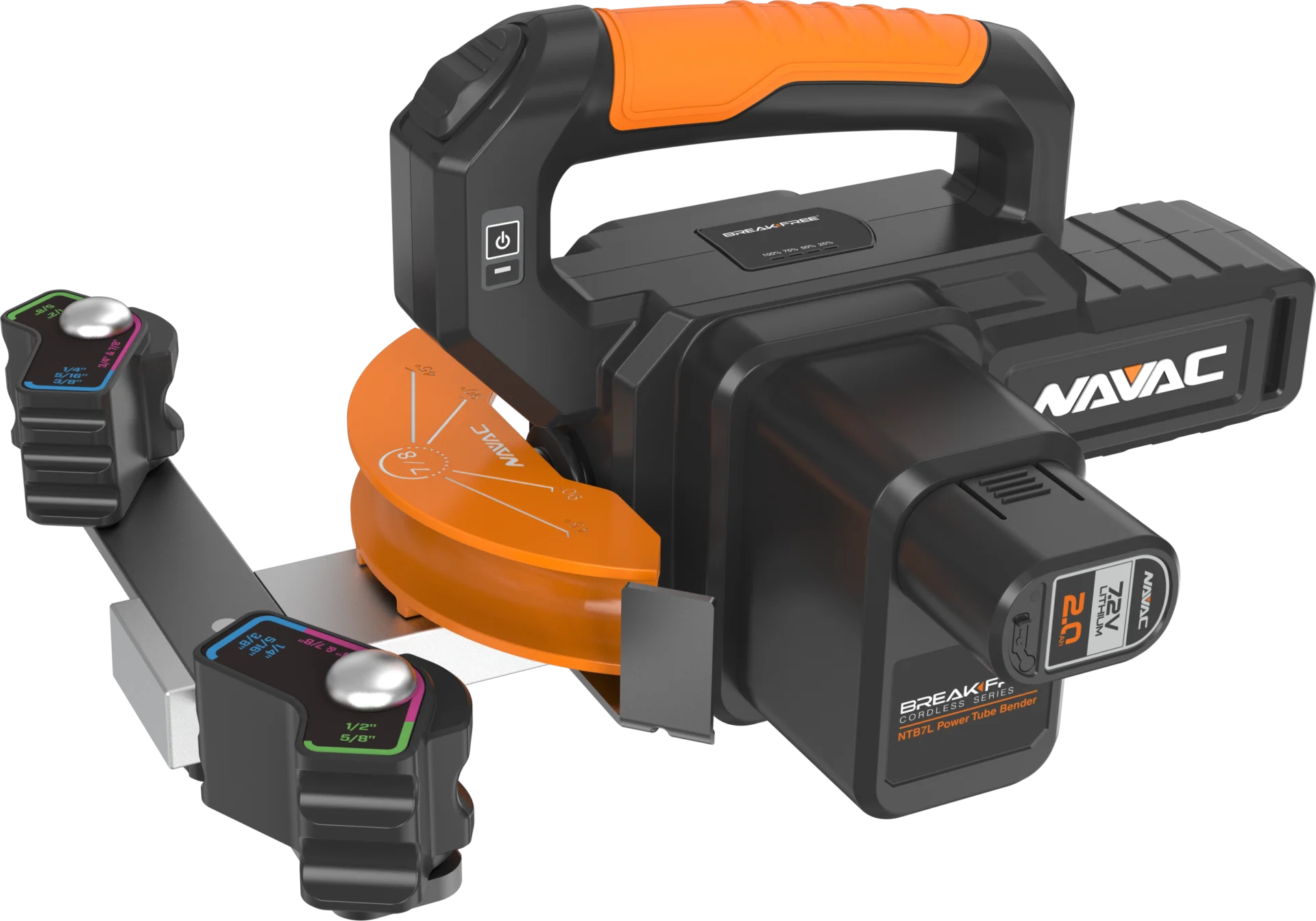

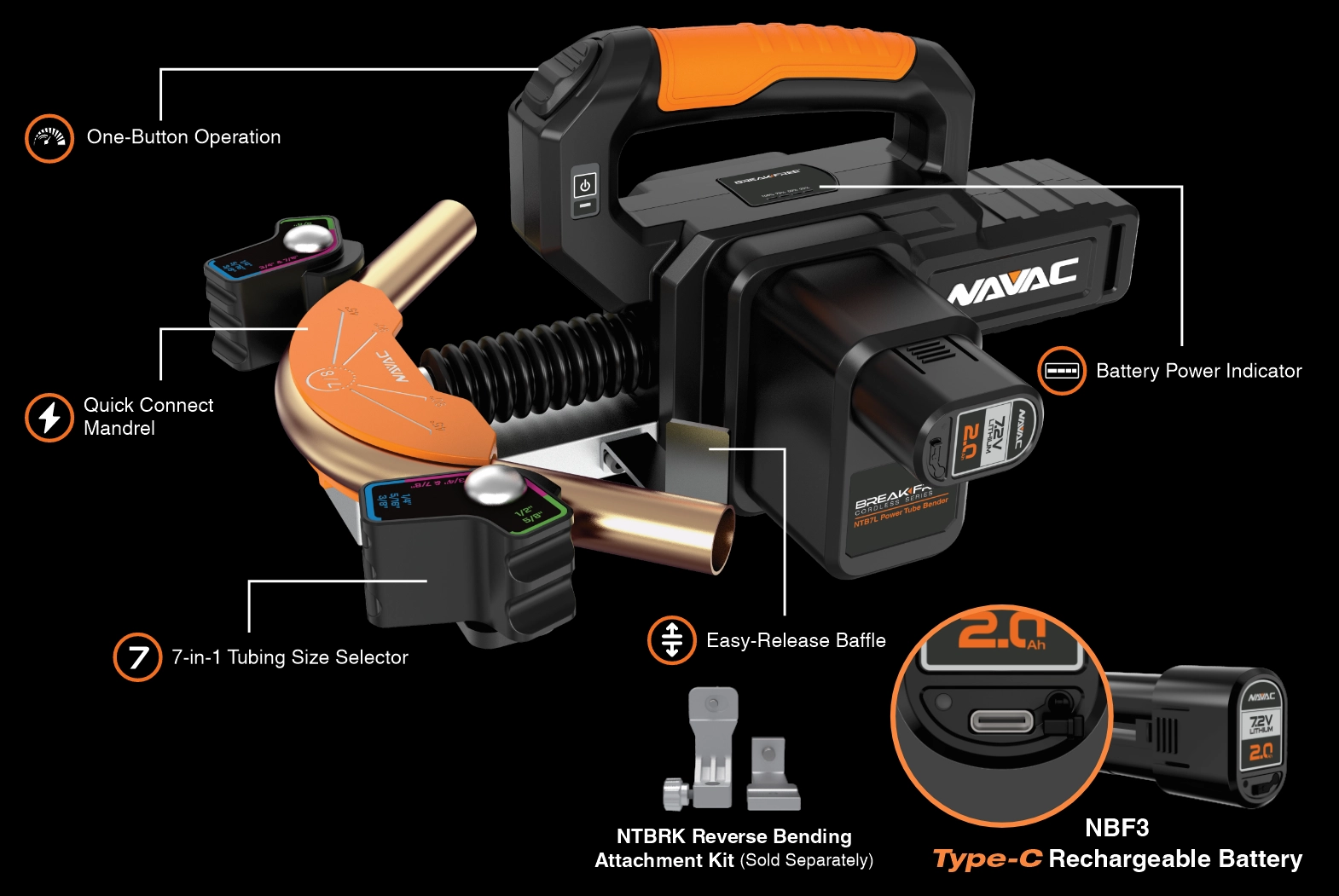

Bending large-diameter tubing can be a labor-intensive and frustrating task for HVAC technicians, often requiring precision and extra effort to remove tubing from traditional benders. The NAVAC NTB7L2 Power Tube Bender is designed to make the job faster and easier. Suitable for tubing sizes from 1/4″ to 7/8″ OD, this battery-driven bender allows technicians to push and hold the control switch to bend tubing smoothly up to 90°, stopping at any point for customized angles. The tool automatically releases the tubing as it resets, eliminating the need for manual removal. Powered by the new NBF3 Type-C rechargeable lithium battery, the NTB7L2 delivers over 100 bends per charge with fast 45-minute Type-C charging, while a battery power indicator keeps users informed. Its upgraded, patented 7-size-in-1 crossbar simplifies workflow across different tubing sizes. An ergonomic handle, quick-connect mandrels, and a NTBRK reverse bending kit (sold separately) further enhance ease of use, making the NTB7L2 a powerful, time-saving solution for modern HVAC professionals.
![]()
| Specification | Details |
|---|---|
| Battery Type | Rechargeable lithium battery, 7.2V 2Ah 14.4Wh, Type-C charging port |
| Tubing Type | Soft (HVACR) Copper |
| Tube OD | 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″ |
| Weight | 6.2 lbs (with battery) |

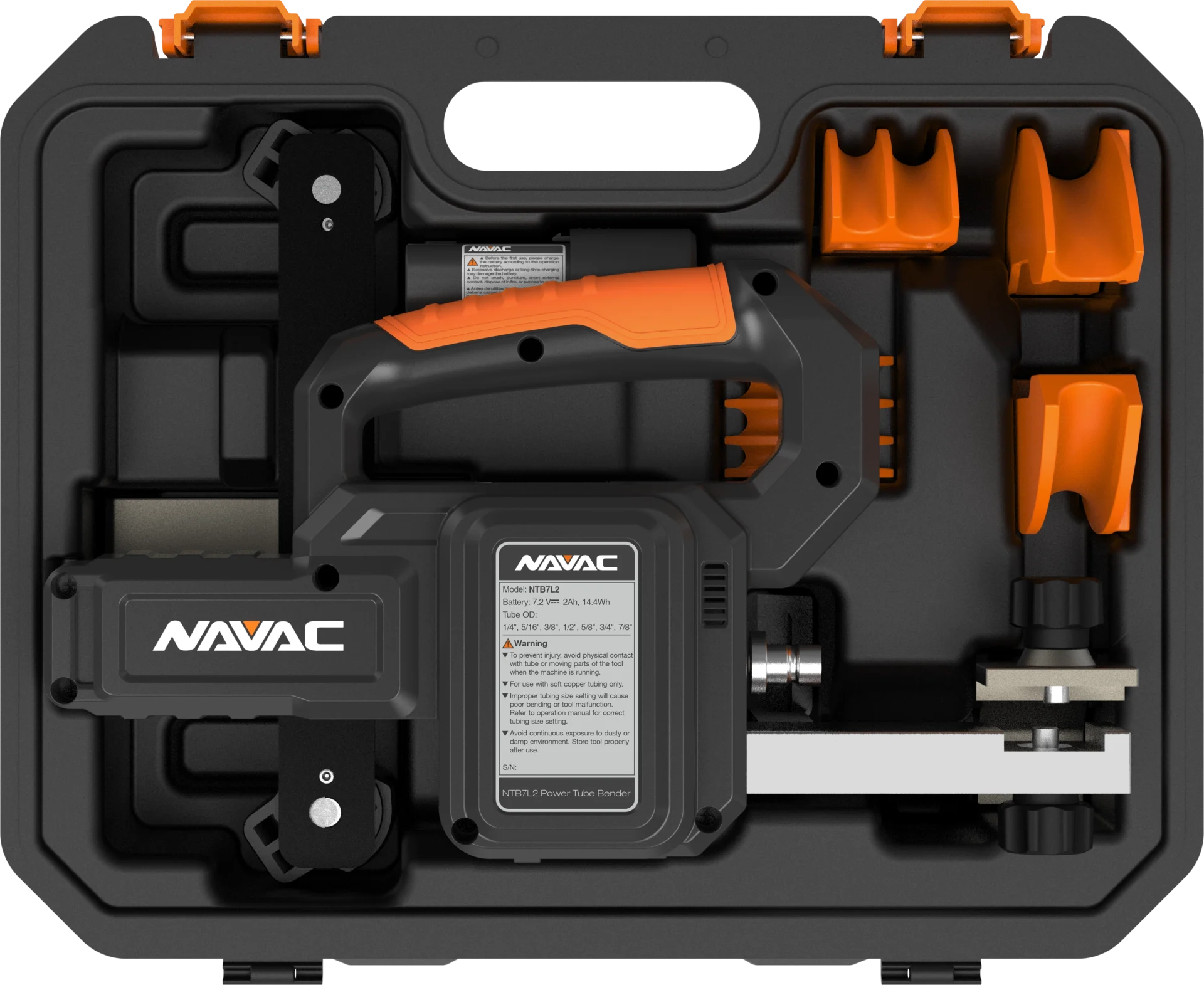

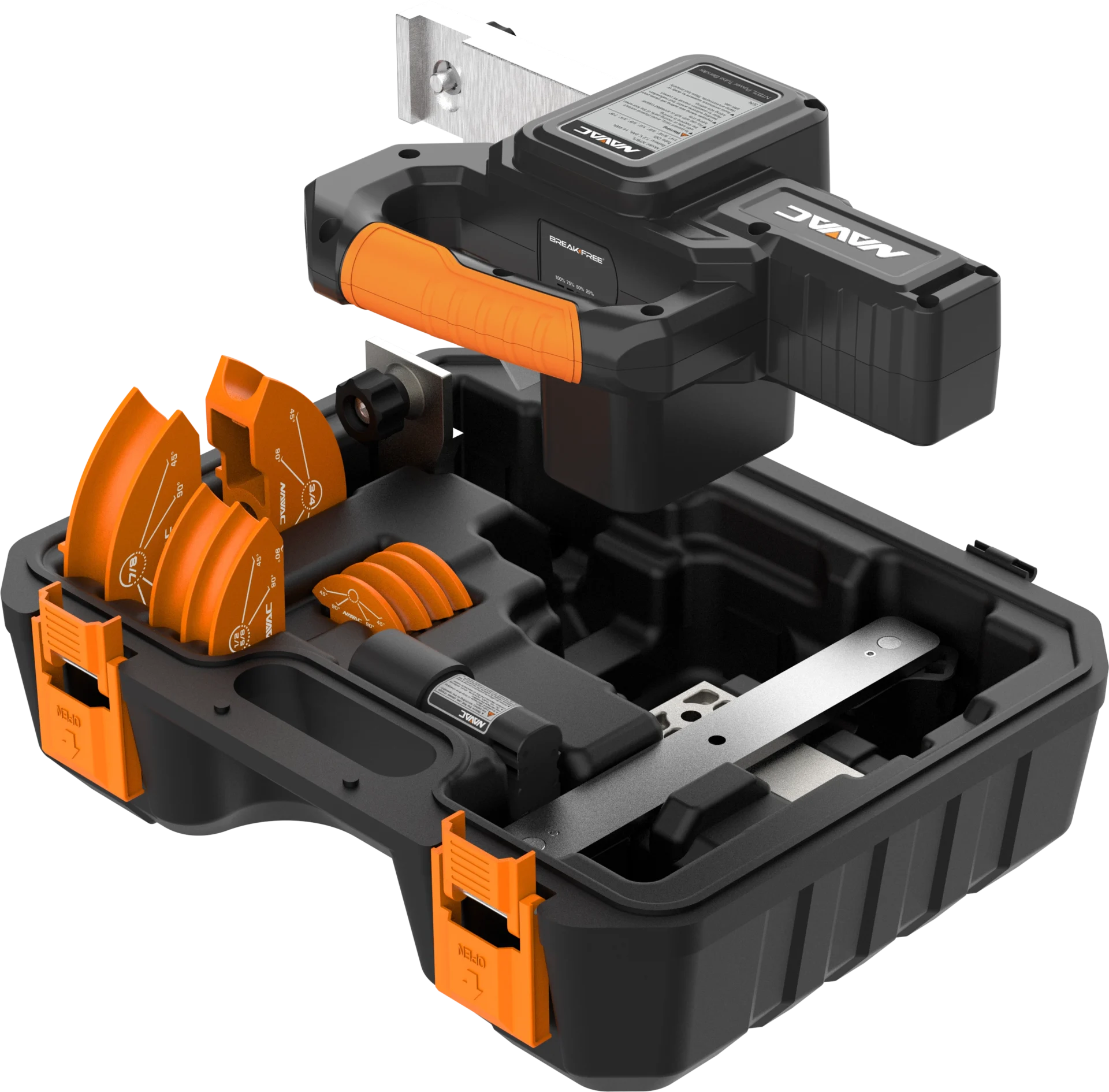

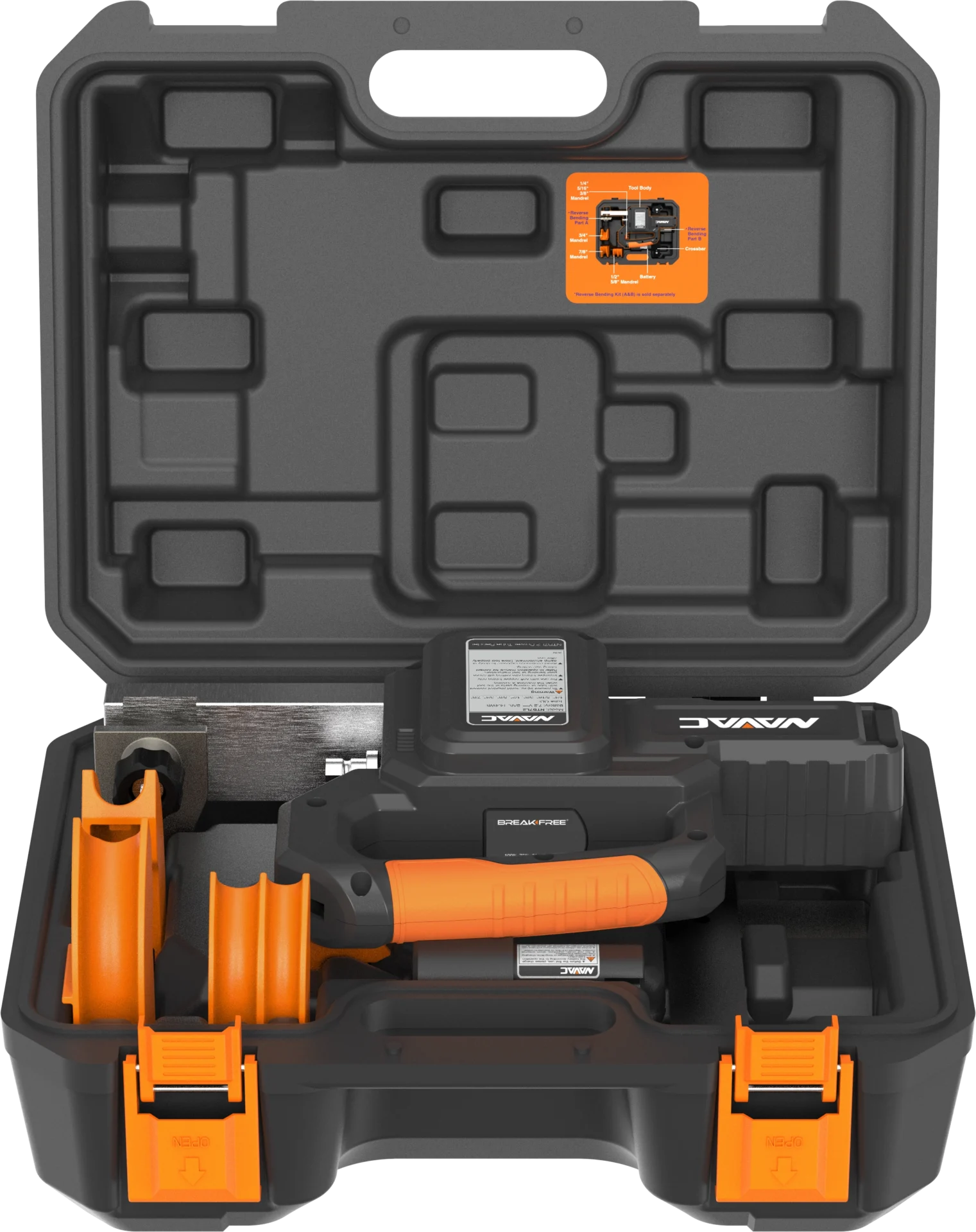

| Accessory | NBF3 Battery, Carry Case |
| Warranty | 2 years |
