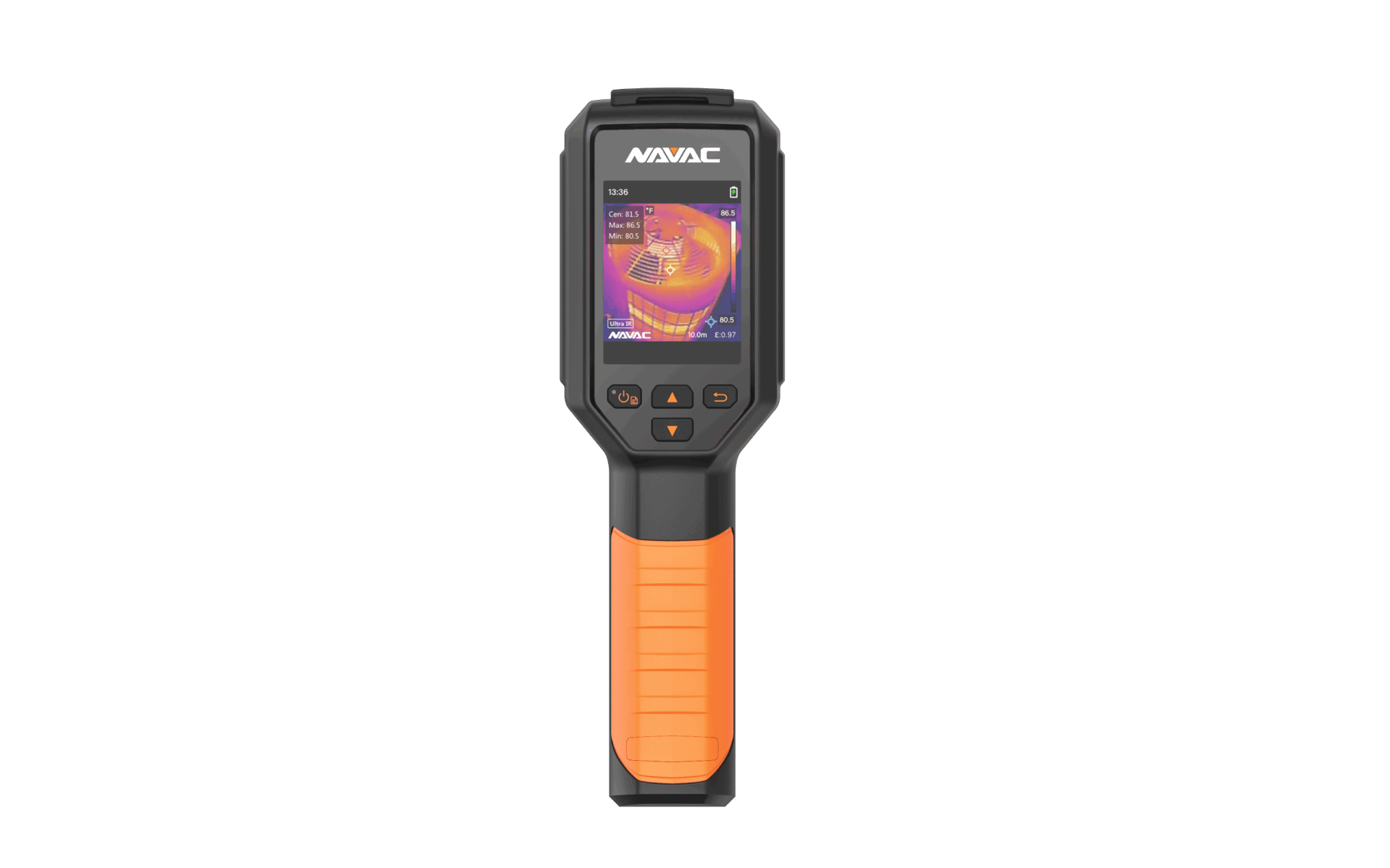

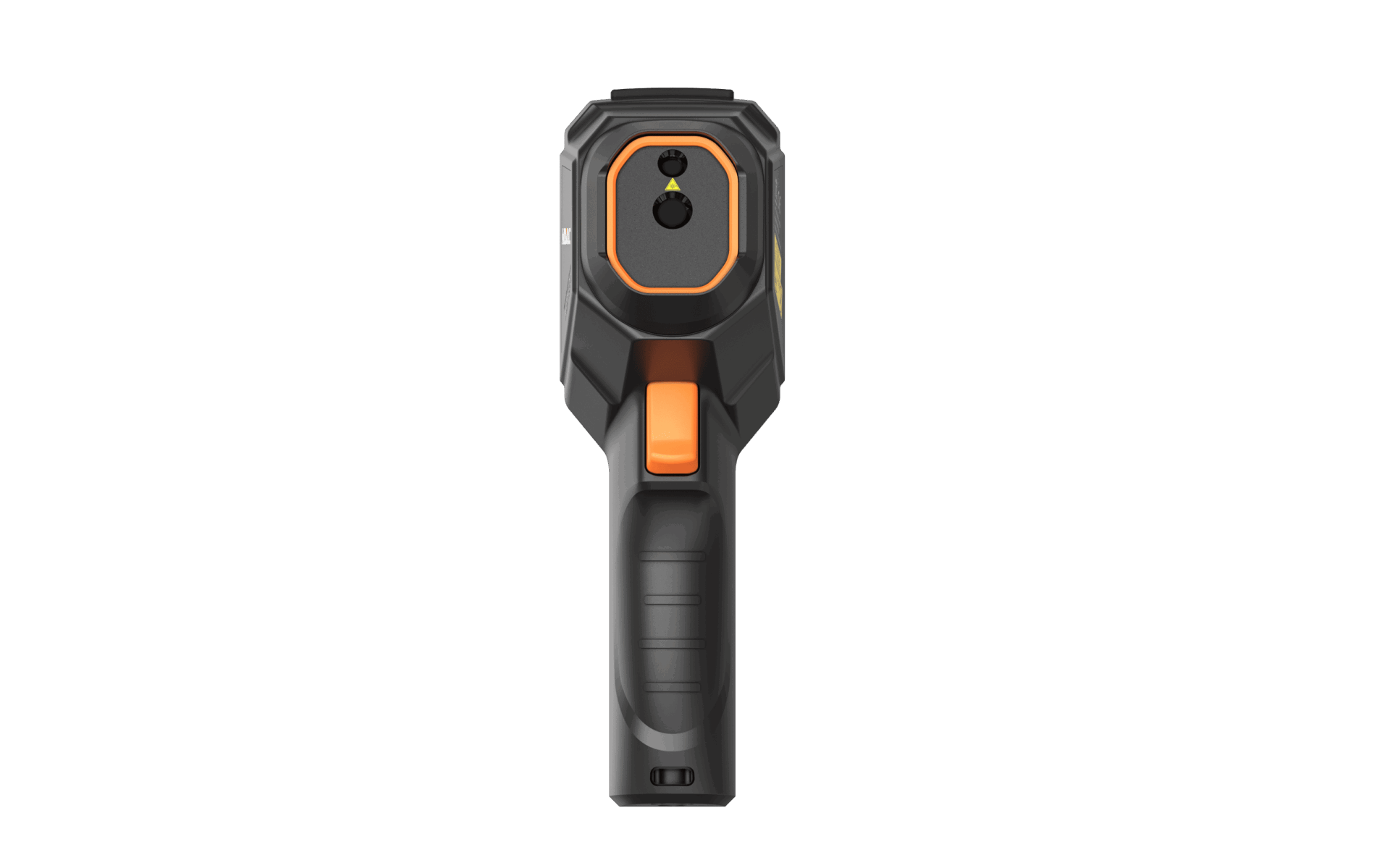

Introducing The NAVAC NMT1200 Thermal Imaging Camera. It designed for HVAC applications. Equipped with a 96×96 resolution thermal detector and Ultra IR technology, it provides the technician with fast and accurate thermal imaging of the entire field of the measurement vs. just spot temperature. It highlights the highest and lowest temperature spots in the field to assist with fast diagnosis and troubleshooting of HVAC systems.
Model | NMT1200 |
---|---|
Ultra IR | 240 x 240 (57,600 pixels) |
IR Resolution | 96 x 96 (9216 pixels) |
Image Frequency | 25 Hz |
Display | 240 × 320 Resolution, 2.4” LCD Screen |
Temperature Range | -4°F to 1022 °F (-20°C to 550°C) |
Accuracy | Max (3.6°F/±2°C/, ±2%) at ambient temperature 77°F (25°C) and object temperature above 32°F (0°C) |
Thermal Sensitivity (NETD) | < 50 mK (@ 25 °C, F#=1.0) |
Battery Life | Approx. 8 hours |
Measurement Presets | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion |
Warranty | 1 Year |
