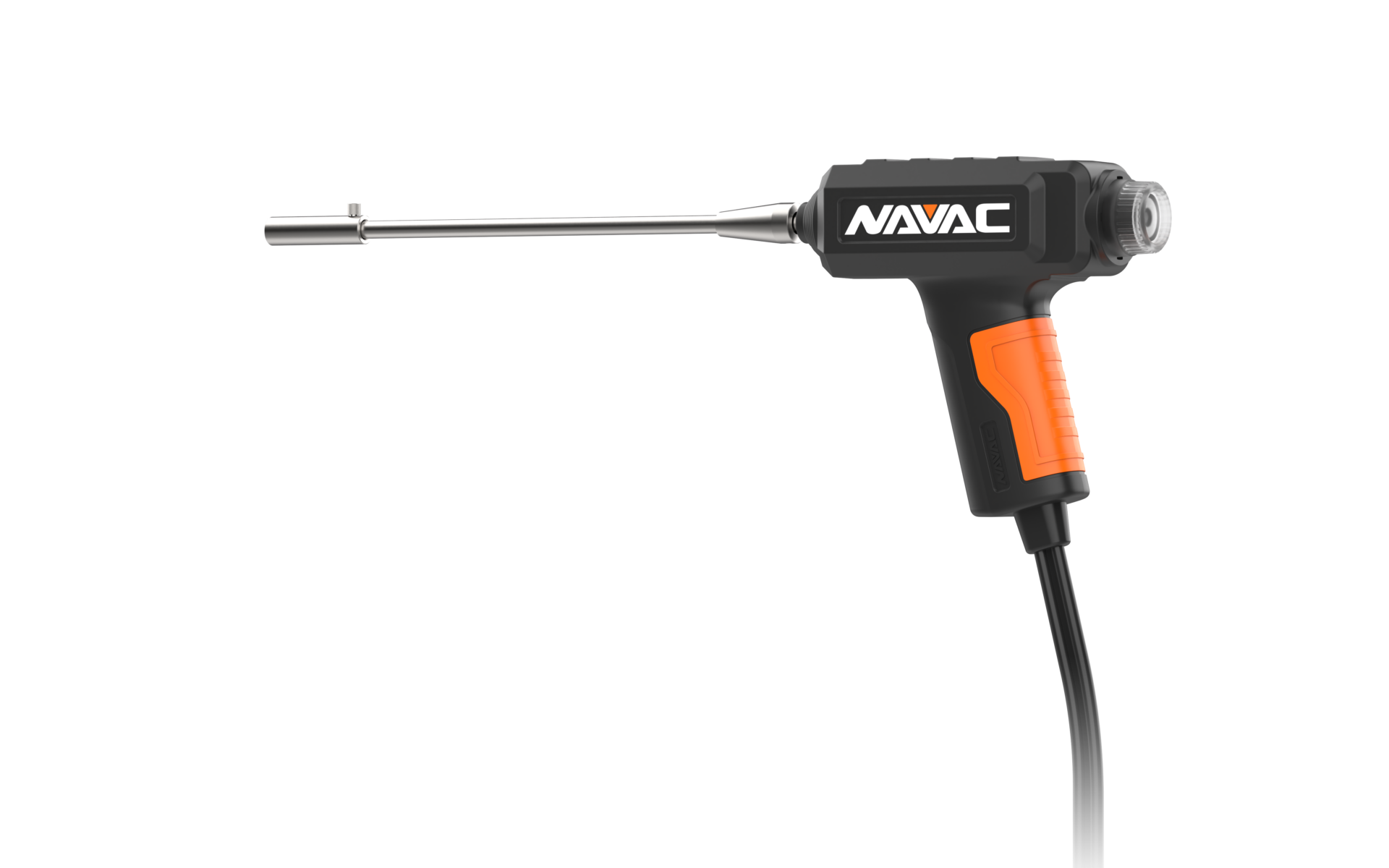

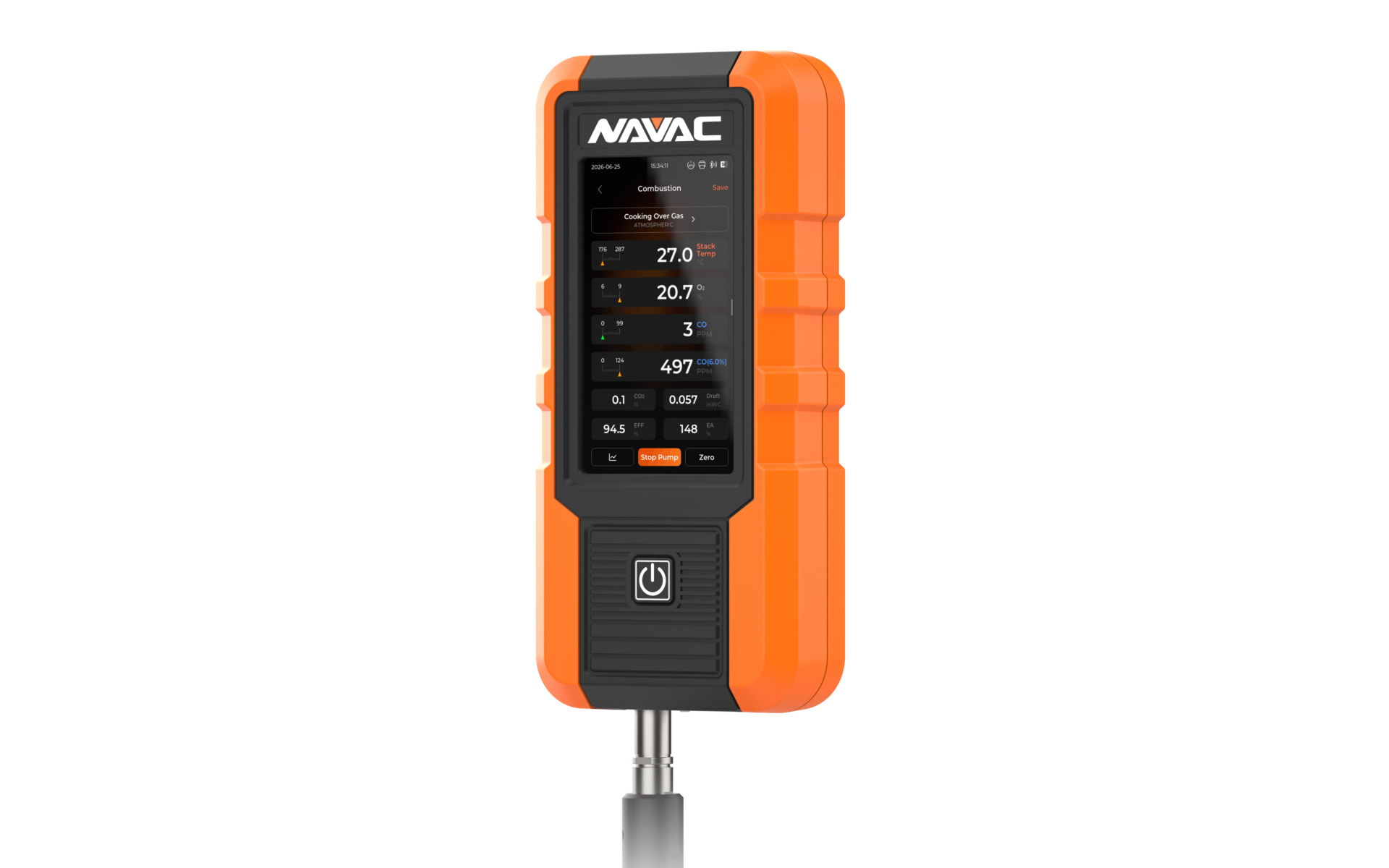

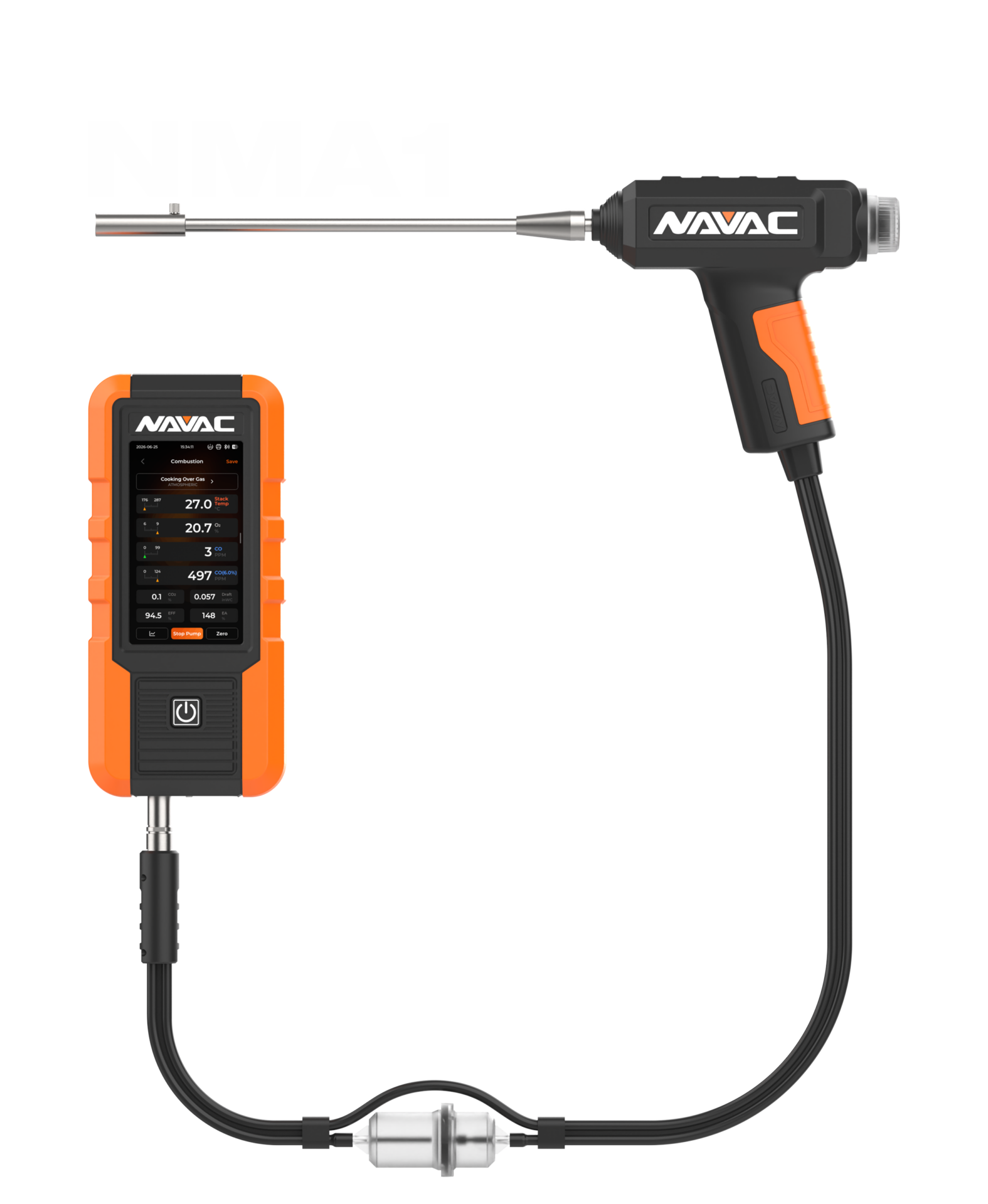

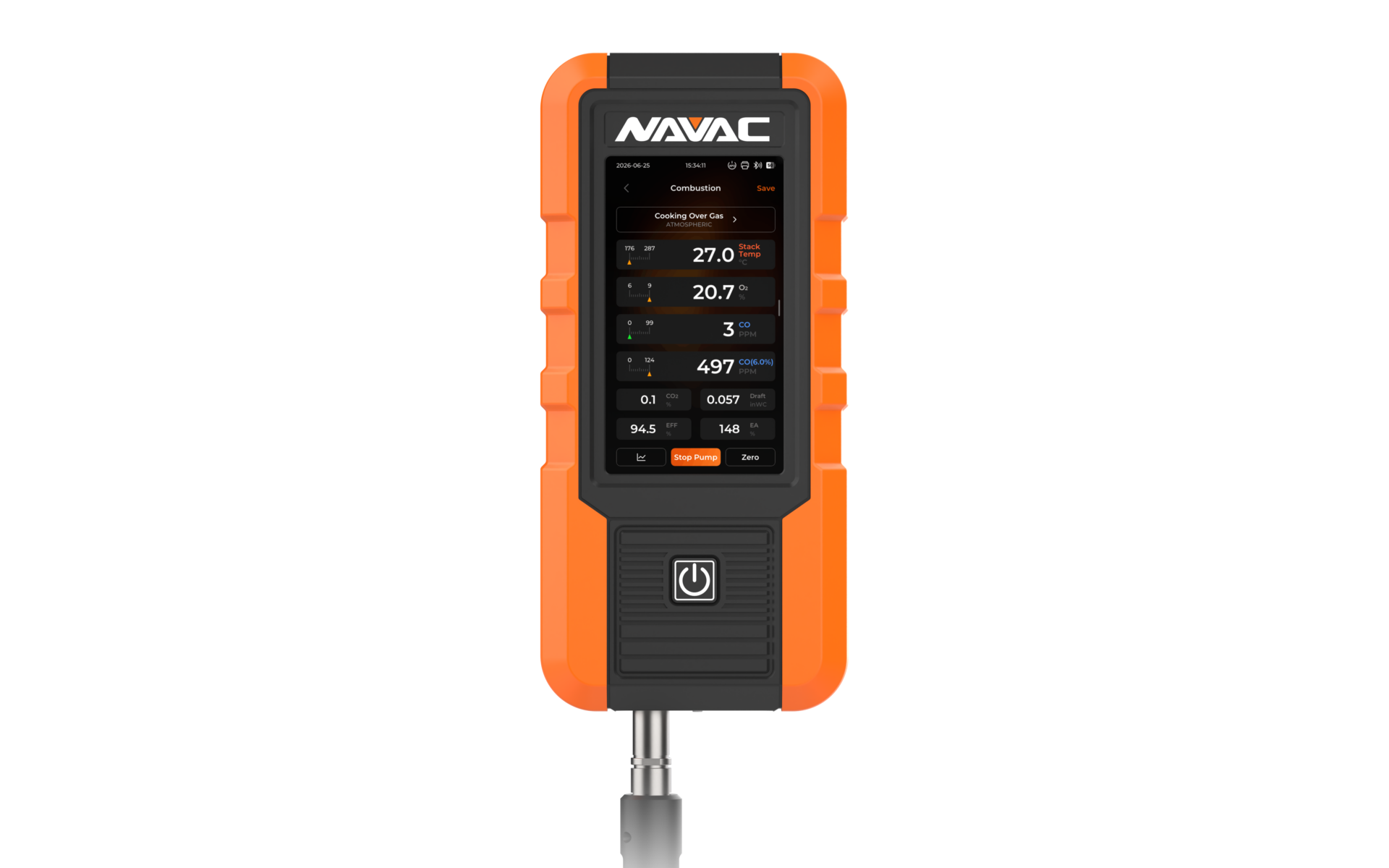

The NMA1 Smart Combustion Analyzer brings complete combustion analysis into a single, smartphone-like tool built for technicians who need fast, reliable readings in the field. Its lightweight, gun-style probe and vivid 5-inch HD touchscreen make setup and operation intuitive, while onboard sensors for O2, CO, flue gas temperature, and differential pressure deliver a full combustion picture — including calculated CO2, efficiency, excess air, and flue gas loss — without the need for a separate manometer. The NMA1 connects wirelessly via Bluetooth to the myNAVAC™ and measureQuick® Apps, letting technicians monitor readings hands-free remotely and log up to 1,000 records for professional job documentation. With a rugged design rated for tough jobsite conditions, a lithium battery with quick charging, and support for all major fuels and system types, the NMA1 is built to keep pace with a full day of service calls. Every unit ships with the accessories needed to get to work right away, backed by a 2-year device warranty and a 4-year sensor warranty.

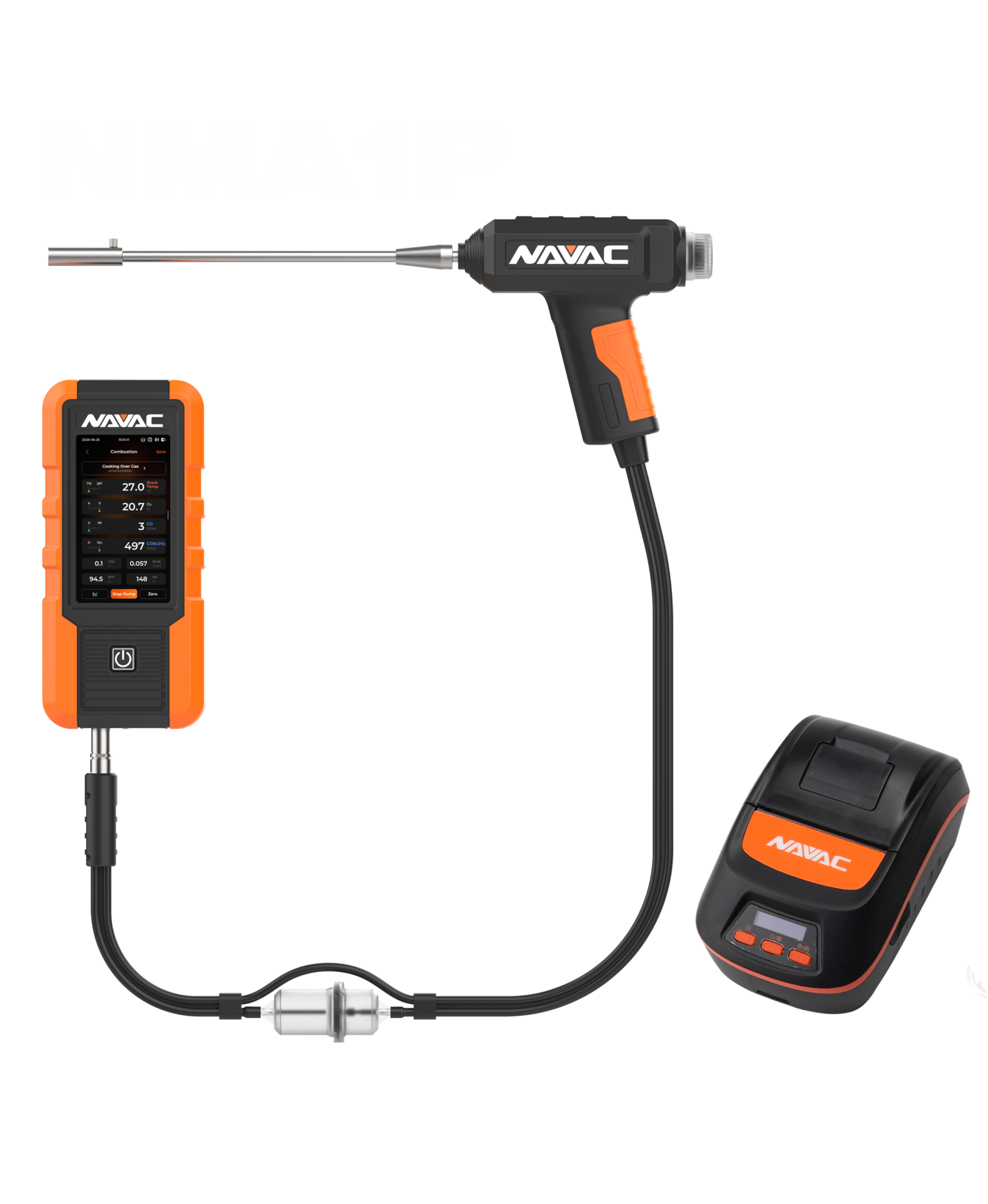

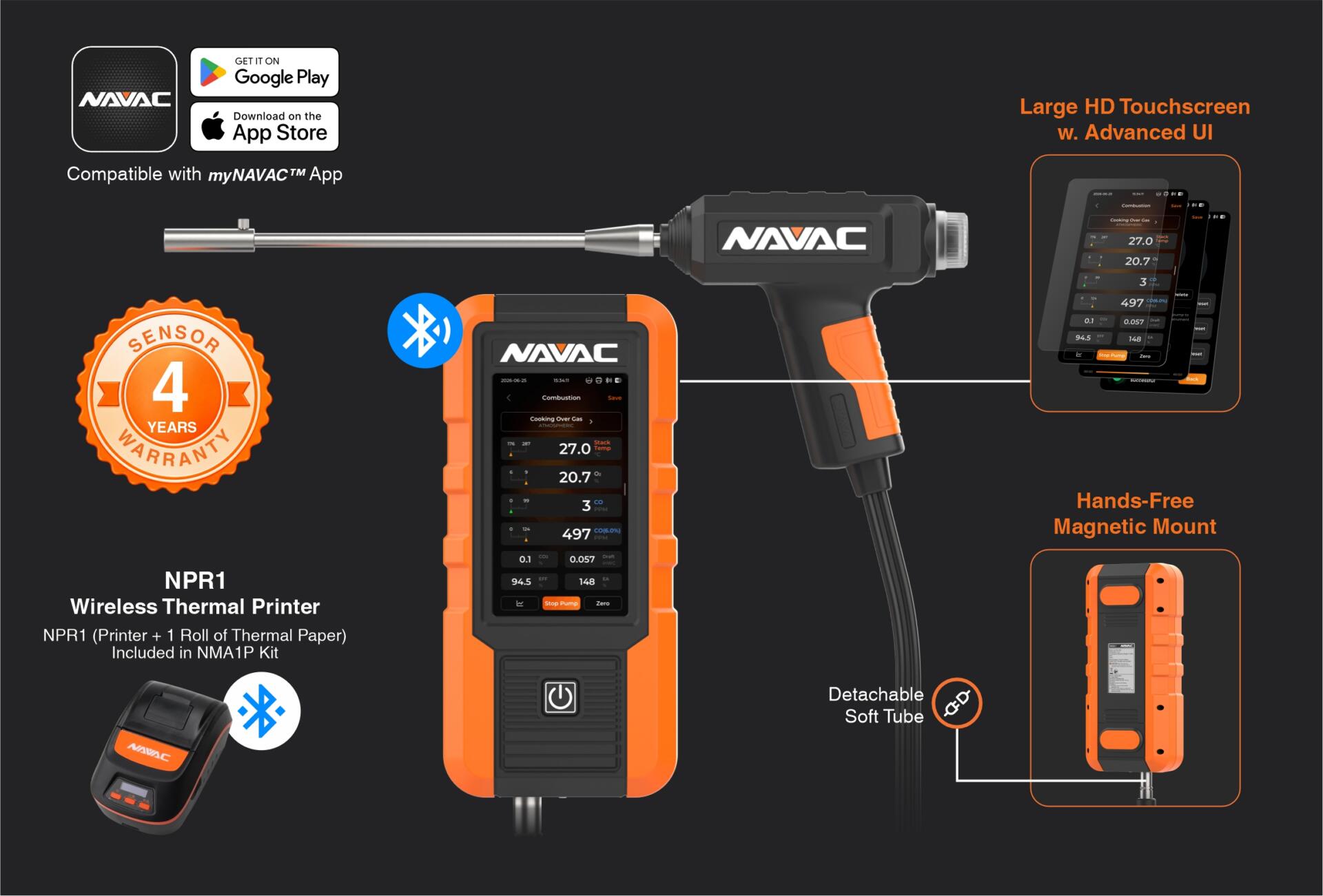

The NMA1P delivers everything the NMA1 offers — full O2, CO, flue temperature, and pressure sensing, smart app connectivity, and a rugged, hands-free design — bundled with NAVAC’s NPR1 wireless thermal printer for technicians who want printed proof of performance on the spot.
| Specification | Details | |
|---|---|---|
| Model | NMA1 (NPR1 Printer NOT Included) | NMA1P (NPR1 Printer Included) |
| Bluetooth Range | ≤164 ft (≤50m) | |
| Pump Flow Rate | ≤400ml/min | |
| Operating Temperature | 23 to 113 °F (-5 to 45 °C) | |
| Operating Humidity | < 90% RH | |
| Storage Temperature | -4 ~ 122°F (-20 ~ 50°C) | |

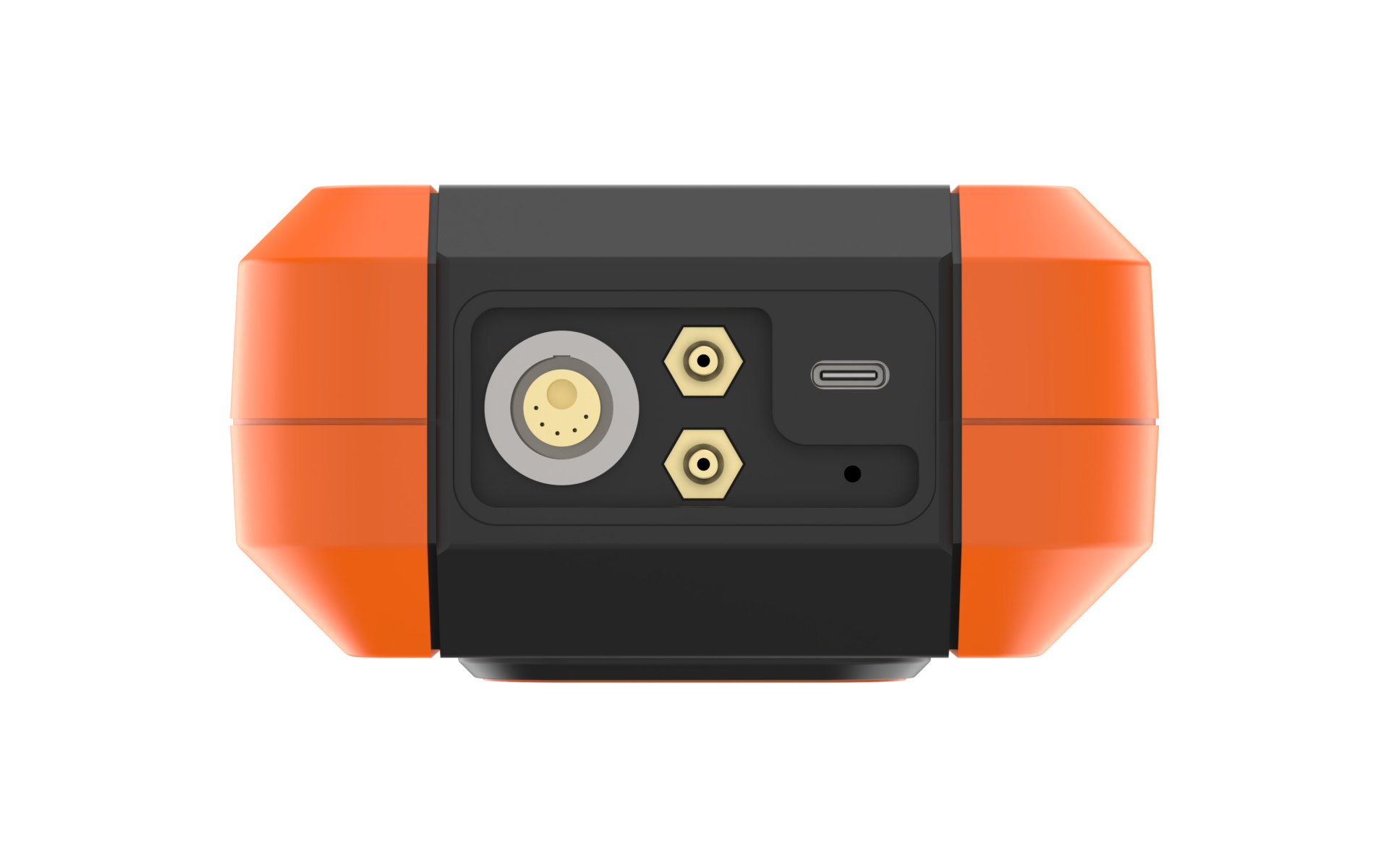

| Power | Type-C charging port | |
| Battery Life | 6 hours (Pump running 100% of the time) | |
| Charging Time | < 3h | |
| Screen Specification | 5 inch, 720*1280 touch screen | |
| Device Weight | 1.65lb (749g) | |
| Measuring Gun Weight | 1.21lb (550g) | |
| Printer Weight | 0.59lb (270g) | |
| Product Dimension | 9.25×4.33×2.32 in (235x110x58.9mm) | |
| Case Dimension | 20.94×13.50×5.24 in (532x343x133mm) | |
| Warranty | 2-Year Device Warranty, 4-Year Sensor Warranty | 2-Year Printer Warranty |
Full Combustion Performance Analysis
| Spec | Measurement Range | Accuracy | Resolution | Response Time |
|---|---|---|---|---|
| Calculated CO2 | 0 to CO2 max vol.% | 0.1 Vol% | ± 0.3 Vol% | < 40s |
| Combustion Efficiency | 0 to 100% | Calculated | 0.10 % | |
| Excess Air | 0 to 999% | Calculated | 0.10 % | |
| Flue Gas Loss (qA) | 0 to 100% | Calculated | 0.10 % | |
| O2 Sensor | 0 to 25 vol.% | 0.1 Vol% | ± 0.3 Vol% | < 30s |
| CO Sensor | 0 to 4000 ppm | ± 10 ppm (0 to 200 ppm), ± 5%rdg (201 to 2000 ppm), ± 10%rdg (2001 to 4000 ppm), Overload: 10000 ppm Carbon Monoxide. |
1 ppm | < 90s |
| Differential Pressure Sensor | 0 to ±40 inWC | ± 0.2 inWC (0 to ±20 inWC), ± 1%rdg [±(20.1 to 40.0 inWC)], Overload: 11.6 psig (321 inWC). |
0.01 inWC | < 10s |
| Flue Gas Temperature Sensor | 32 to 1112°F (0 to 600°C) | ± 2.5°F (32°F to 212°F), ± 3.6°F or 1.5%rdg (213°F to 1112°F); ± 1.4°C (0°C to 100°C), ± 2.0°C or 1.5%rdg (101°C to 600°C). |
0.1°F (0.1°C) | < 30s |
| Ambient Temperature Sensor (One-Time Air Temperature) |
-4 to 248°F (-20 to +120°C) | ±3.6°F (± 2.0°C) | 0.1°F (0.1°C) | < 30s |
