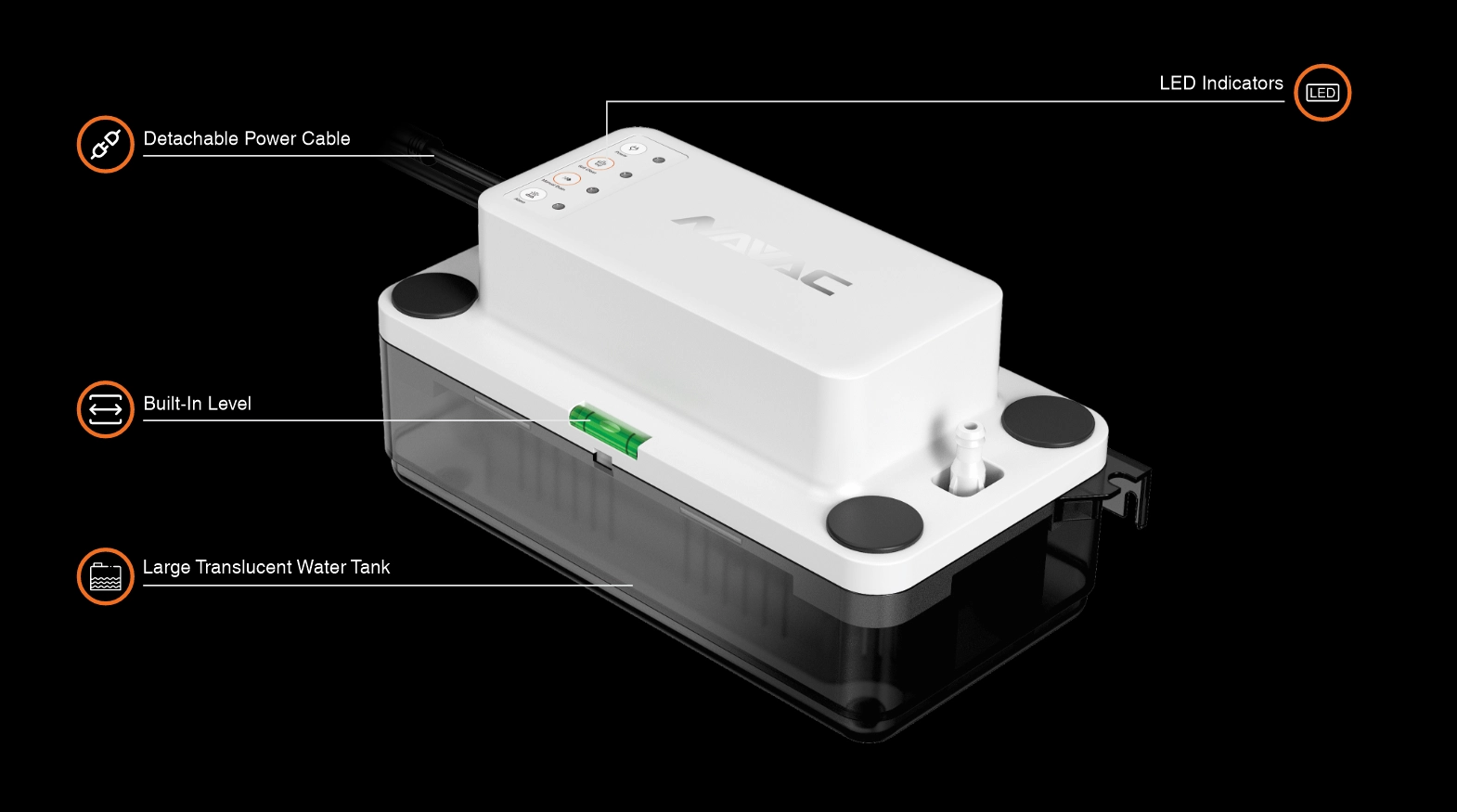

The NCT145 Tank Pump provides smart, automatic condensate management with reliable performance and easy maintenance for HVAC systems. Powered by a durable centrifugal pump and brushless DC motor, it delivers a maximum lift of 23 feet and handles condensate temperatures up to 160°F. A built-in water-level safety sensor with overflow protection ensures safe operation, while the 1/2-gallon translucent tank allows quick inspection and improved efficiency. Featuring automatic self-cleaning, a manual drain, LED status indicators, and a 3/8″ OD discharge port with a built-in check valve, the NCT145 is a homeowner’s ideal condensate management solution for ducted systems, while remaining easy for technicians to install, service, and maintain.
| Specification | Details |
|---|---|
| Power Supply | 100-240V/50-60 Hz |
| Flow Rate | 145 GPH |
| Max. Lift | 23 feet |
| Water Tank Capacity | 0.5 Gallon |
| Noise Level at 1 meter | 45 dB(A) |
| Applicable Ambient Temperature | 160°F (70°C) |
| Certification | CSA. CE |
| Accessories | 3 cable ties, Detachable Power Cable, 16′ Water Pipe |
| Warranty | 1 Year |
