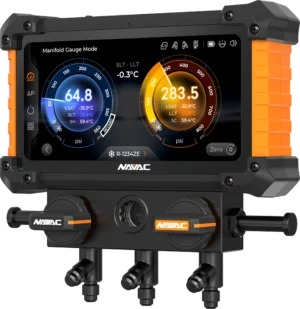

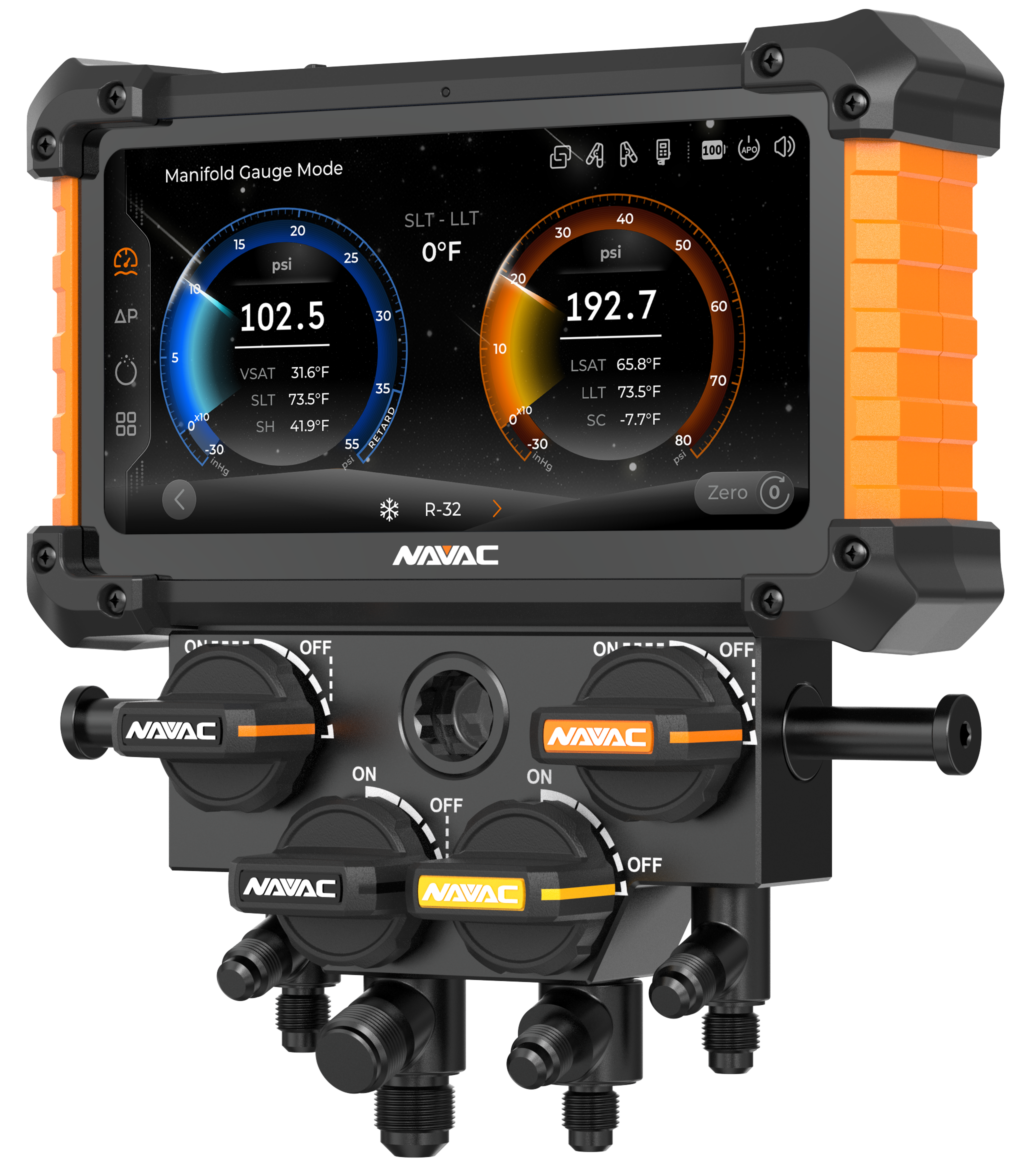

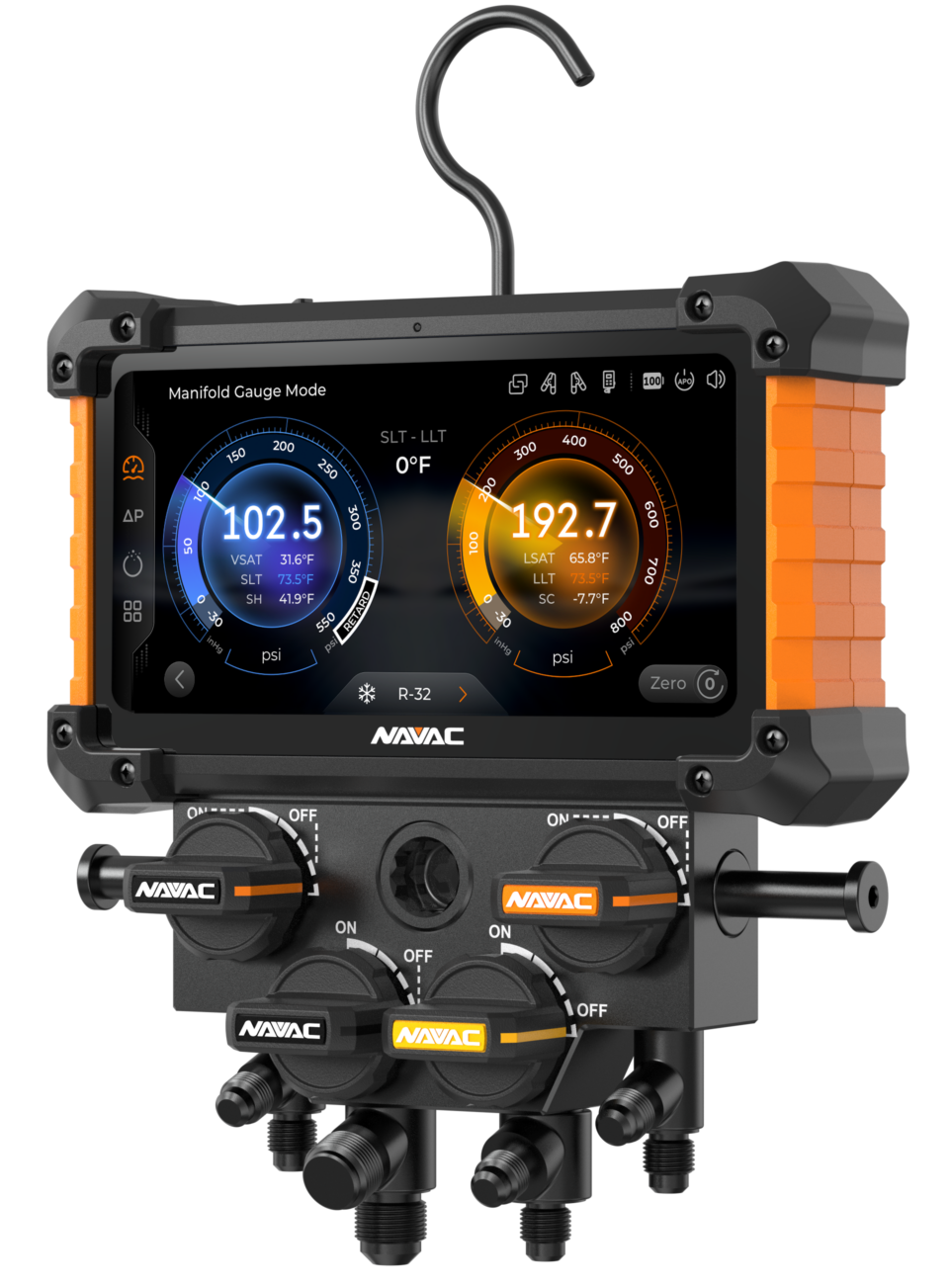

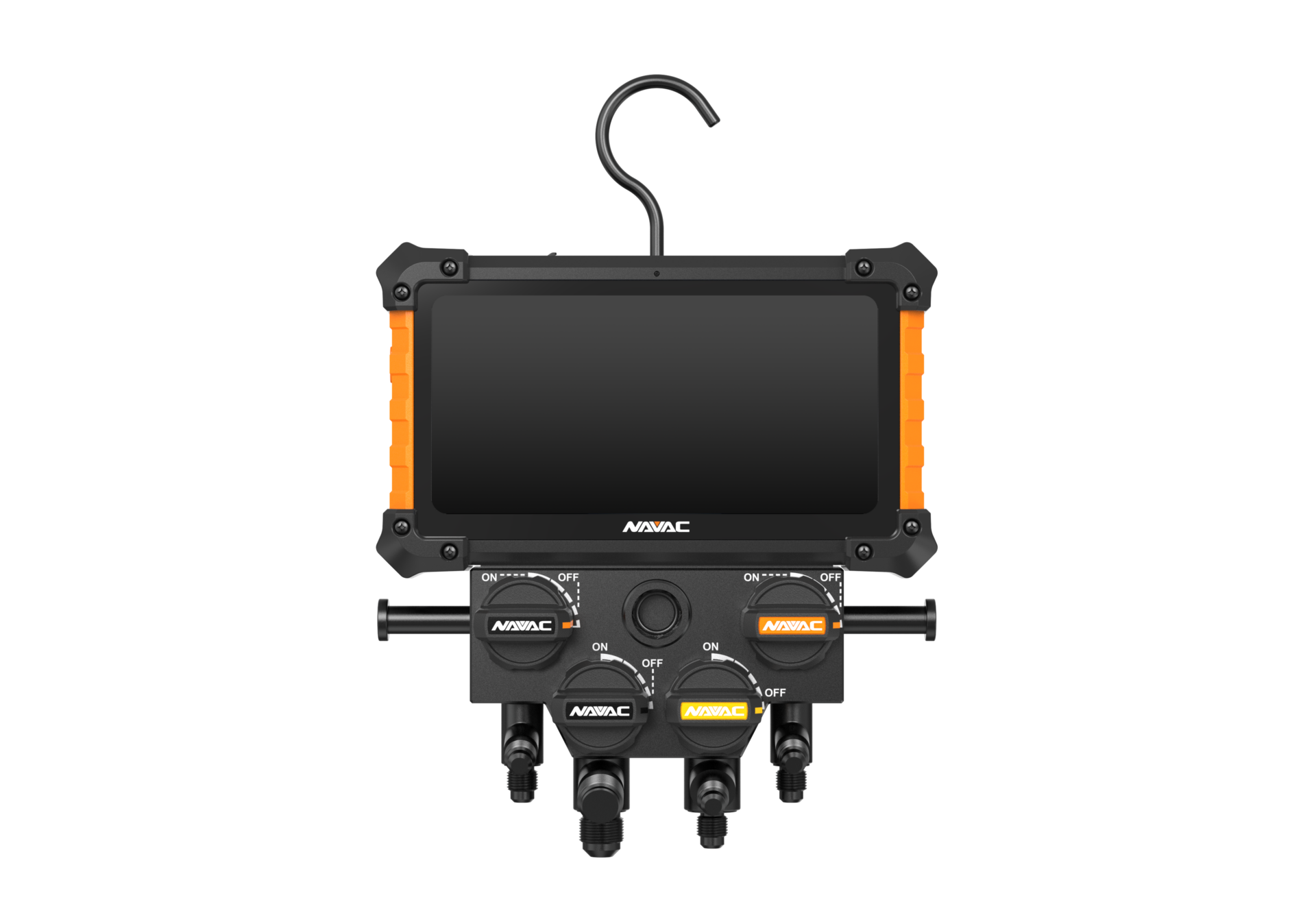

Touch. Read. Master. Introducing NEXUS 2, the next-generation manifold gauge built to elevate your workflow.
The NEXUS 2 is the ultimate manifold gauge every HVAC technician needs. Added versatility of a 4-valve configuration to the NEXUS 2 platform, it enables a true plug-and-play setup. Simply hook up your hoses once and handle it all: diagnostics, charging, and evacuation — seamlessly in one device.

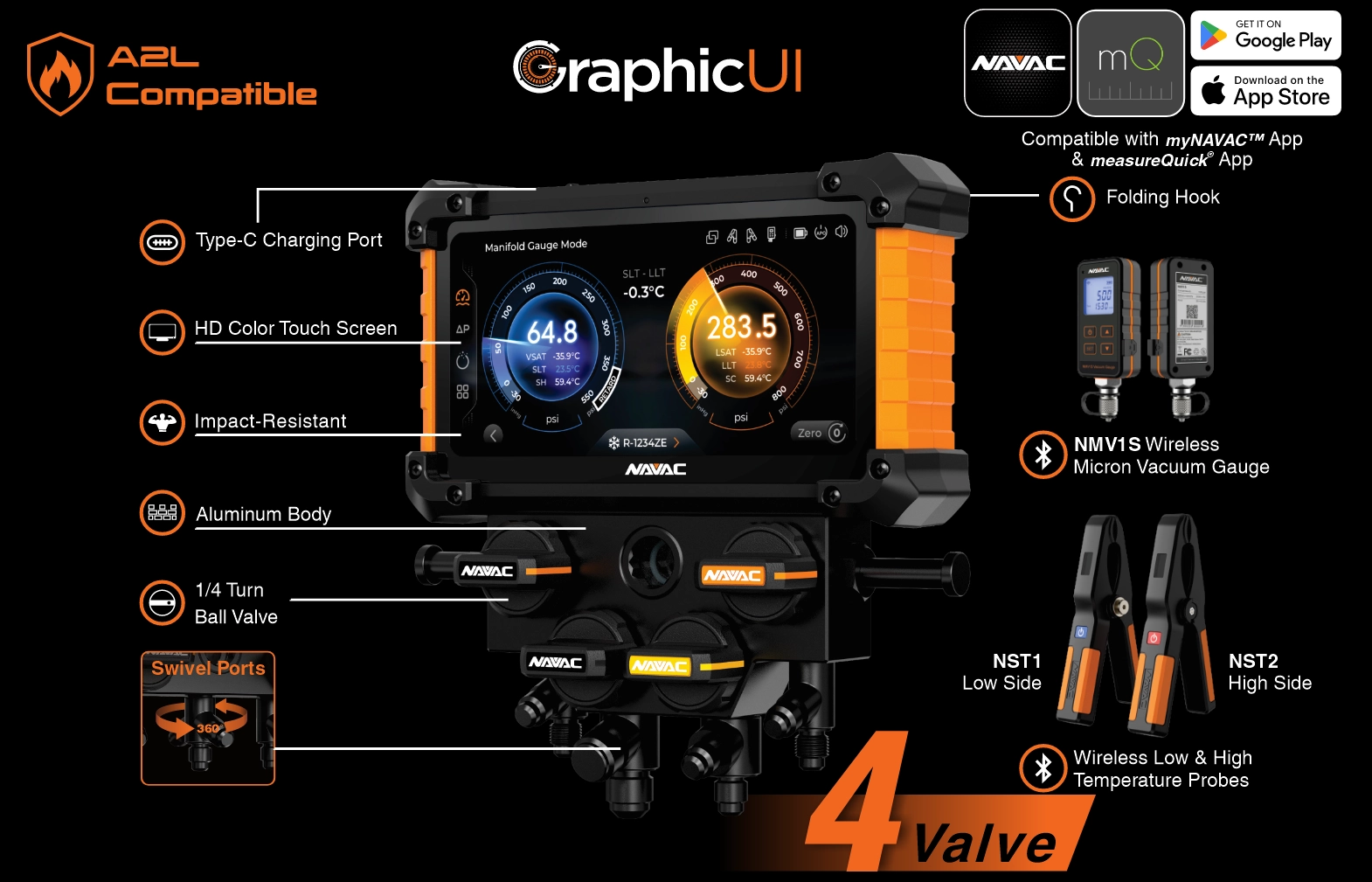

Whether working with legacy refrigerants like R22 or modern blends such as R454B, NEXUS 2 supports 100 refrigerants and stays future-ready with easy updates via the myNAVAC App. Engineered for toughness, it features a heavy-duty protective shell that safeguards both the sensors and the HD touchscreen, ensuring long-lasting durability. With Class 0.4 accuracy, smart wireless connectivity, rechargeable battery power, and seamless integration with MeasureQuick App, NEXUS 2 expands its usability. For added convenience and control, NEXUS 2 includes quarter-turn ball valves for faster operation and swivel hose ports to increase portability and flexibility in tight spaces.

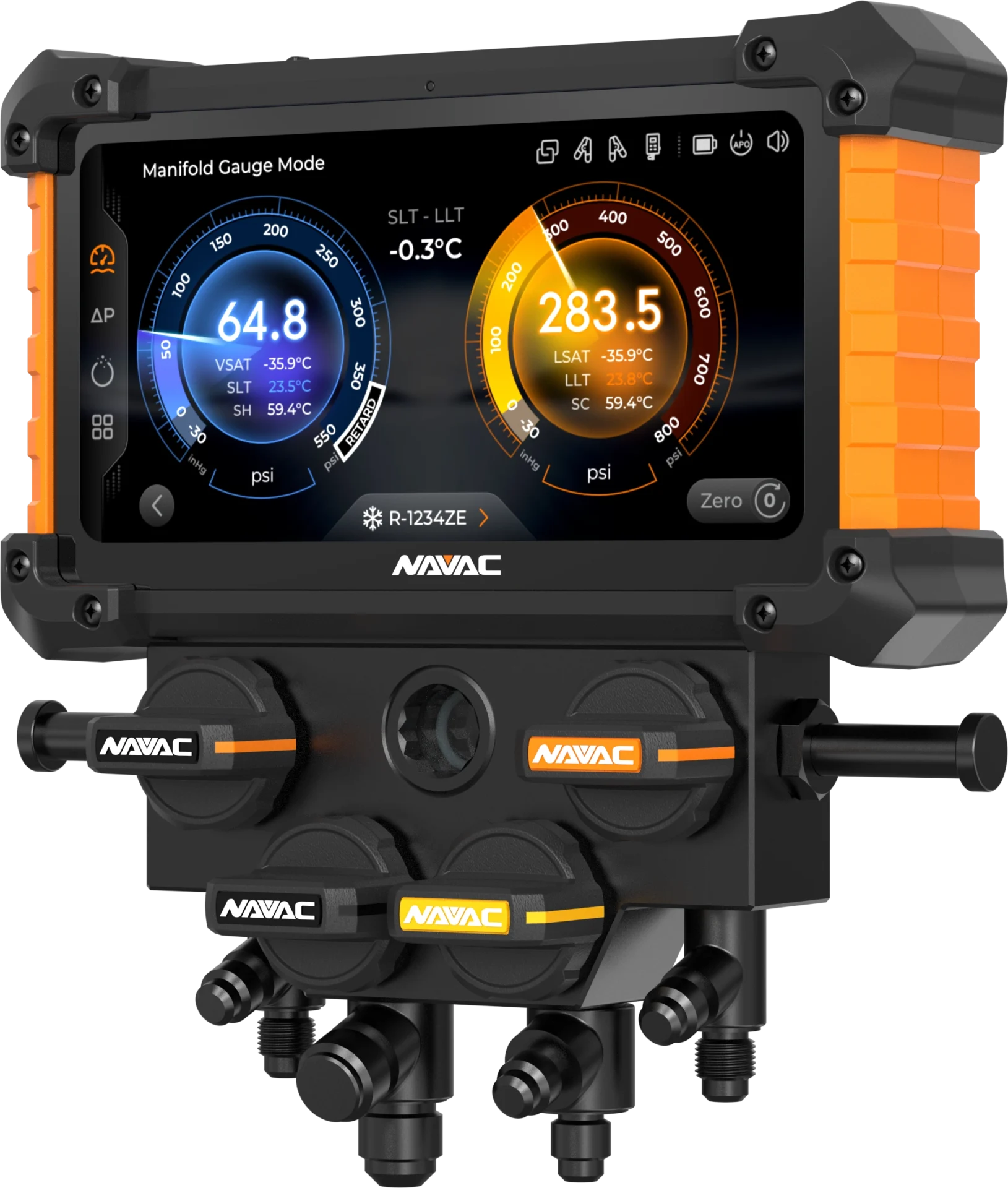

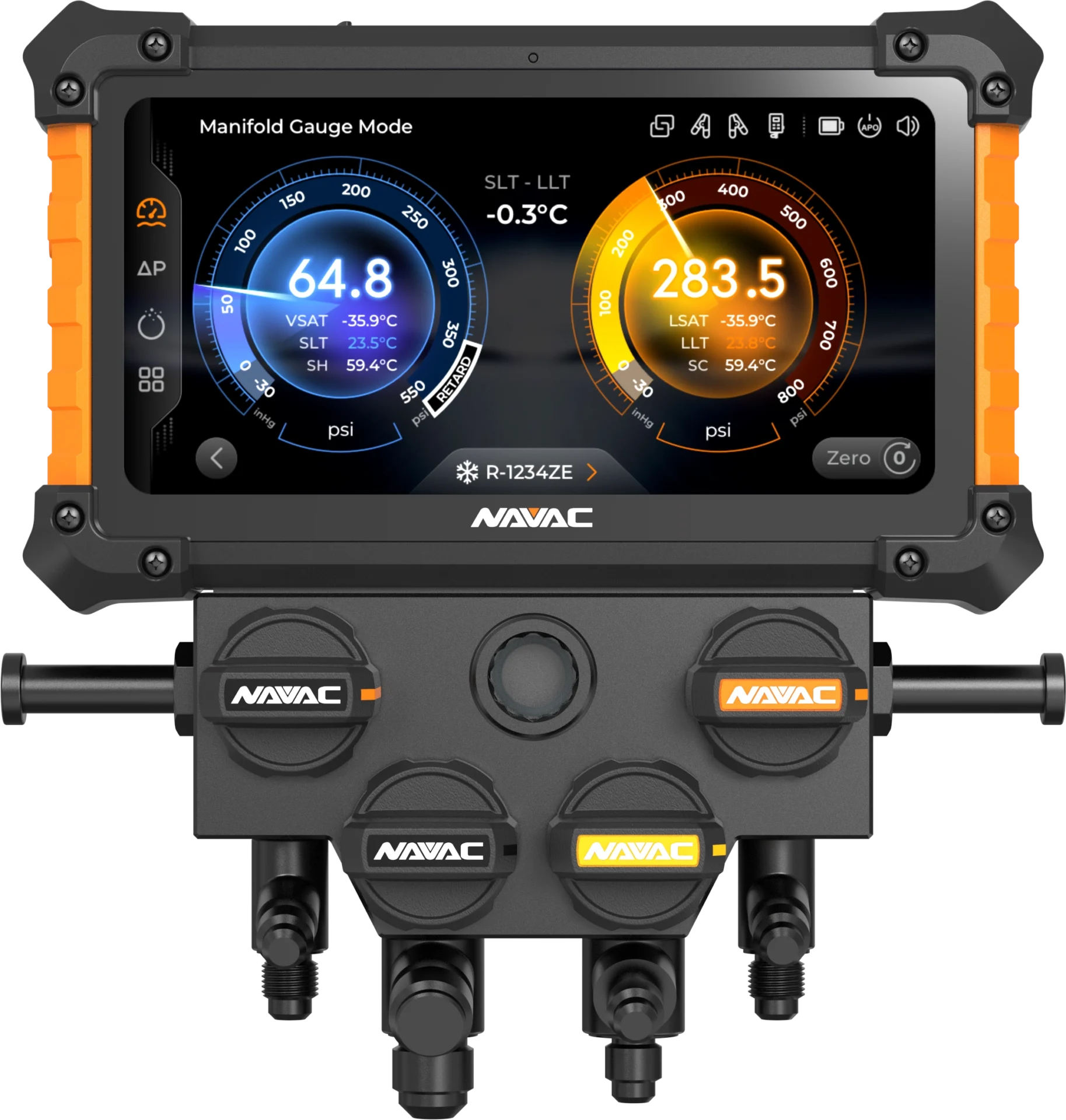

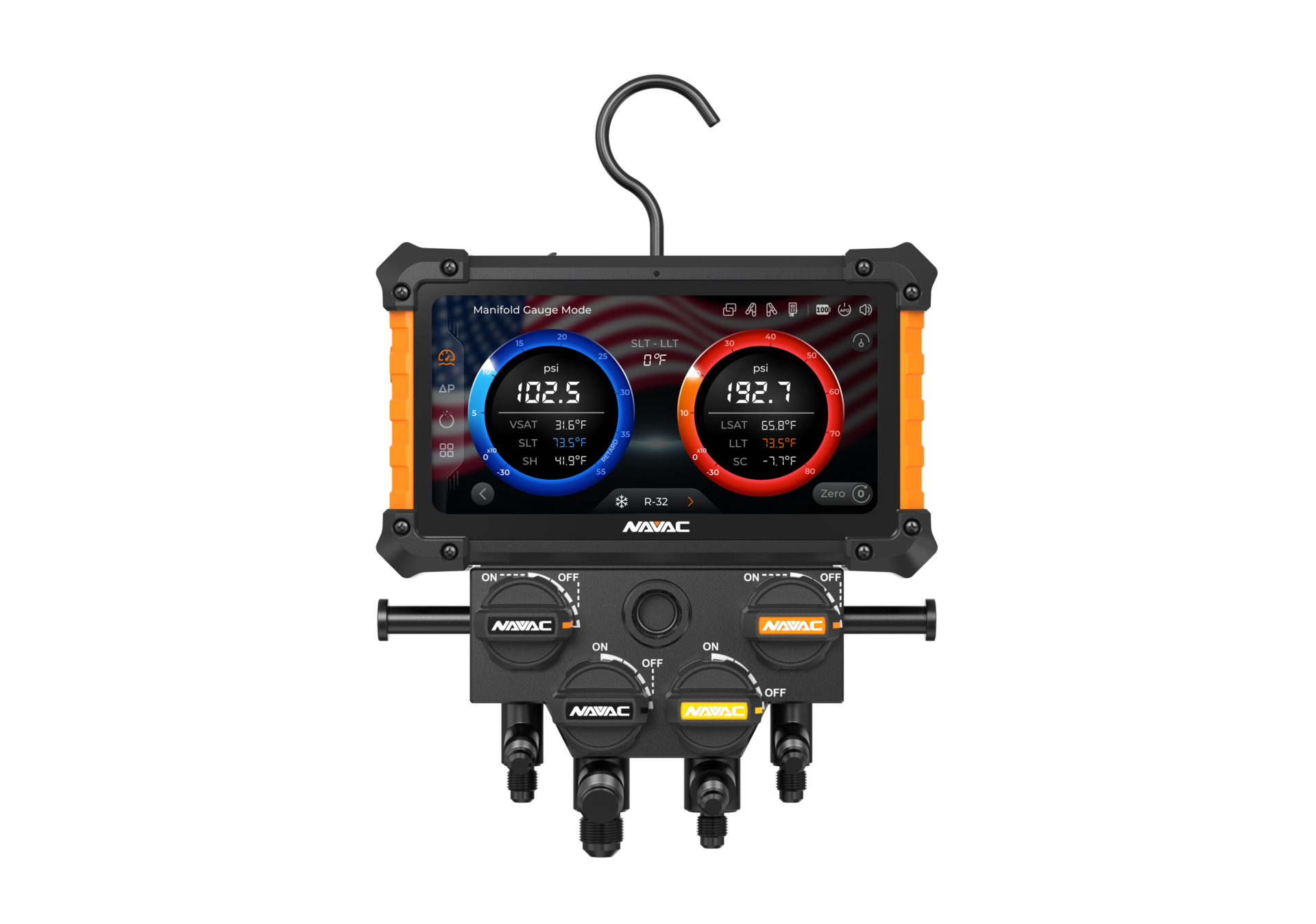

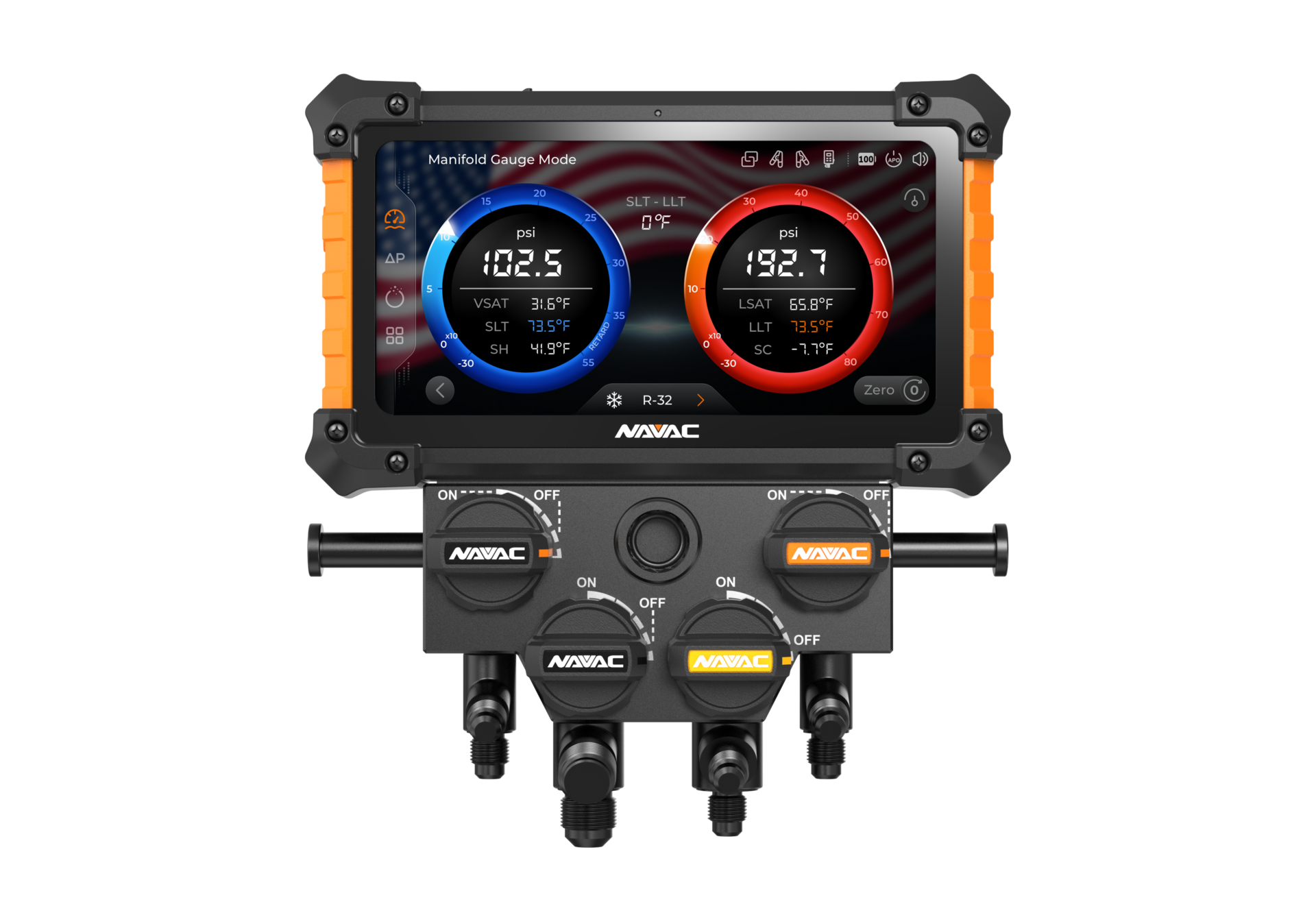

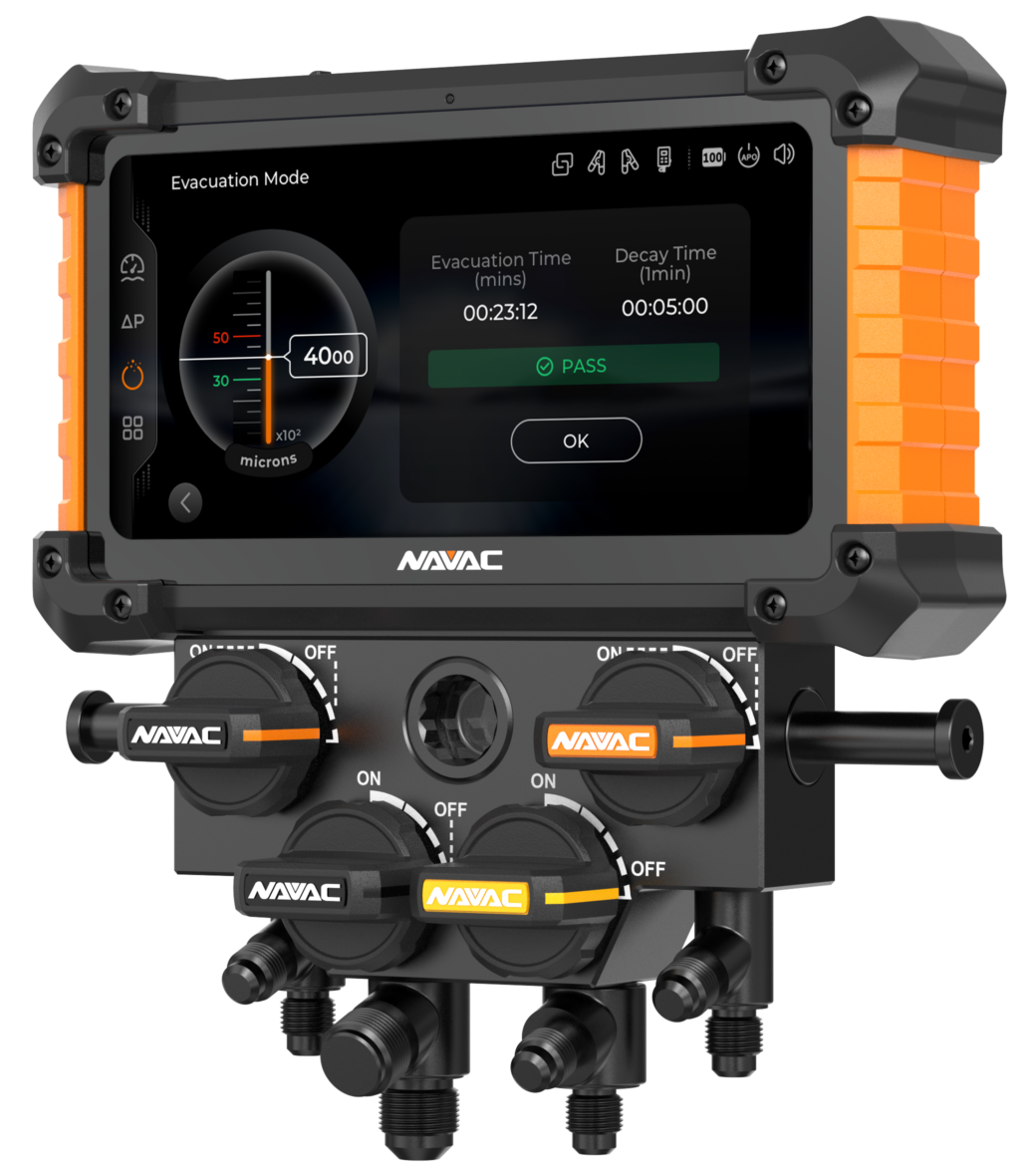

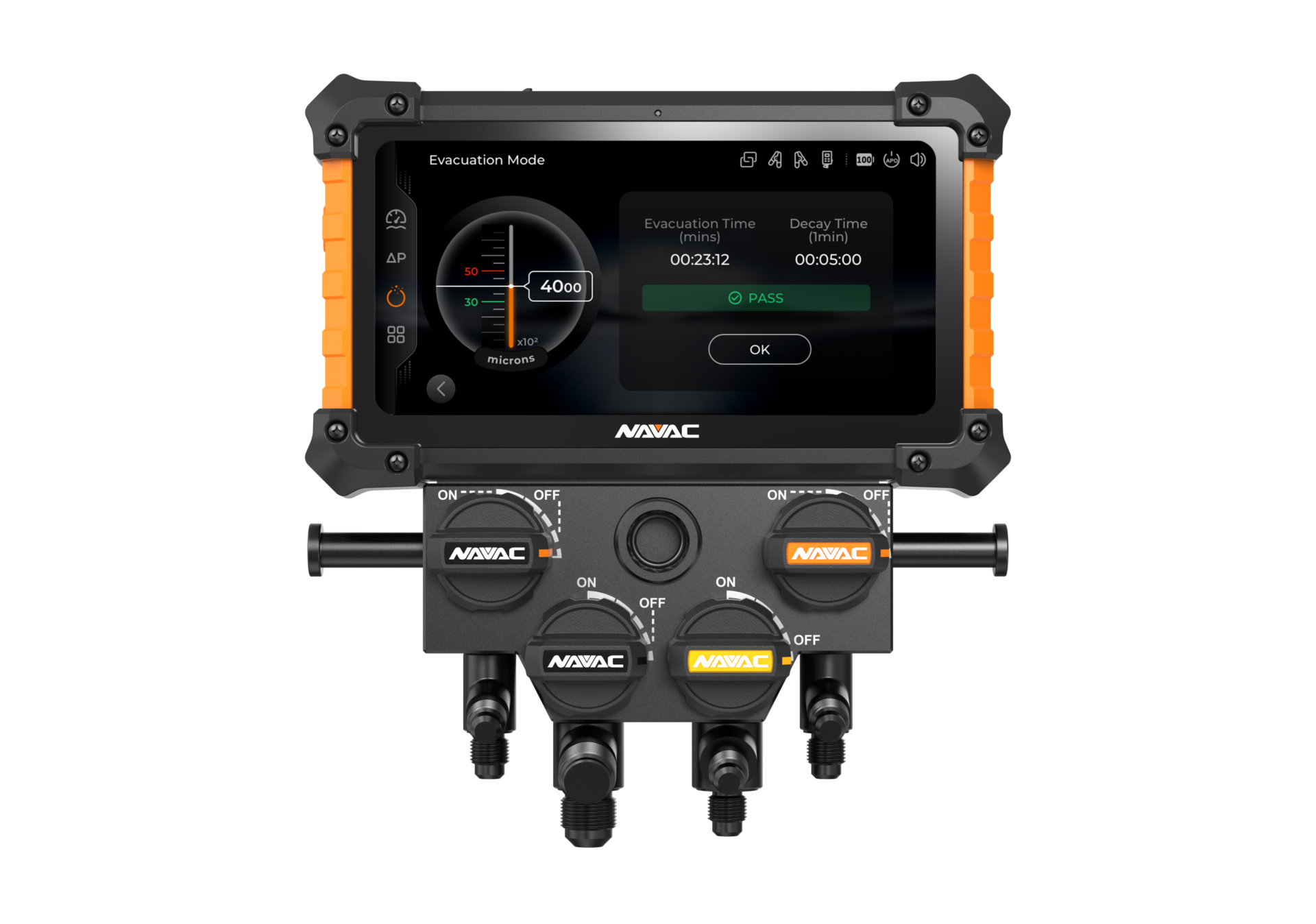

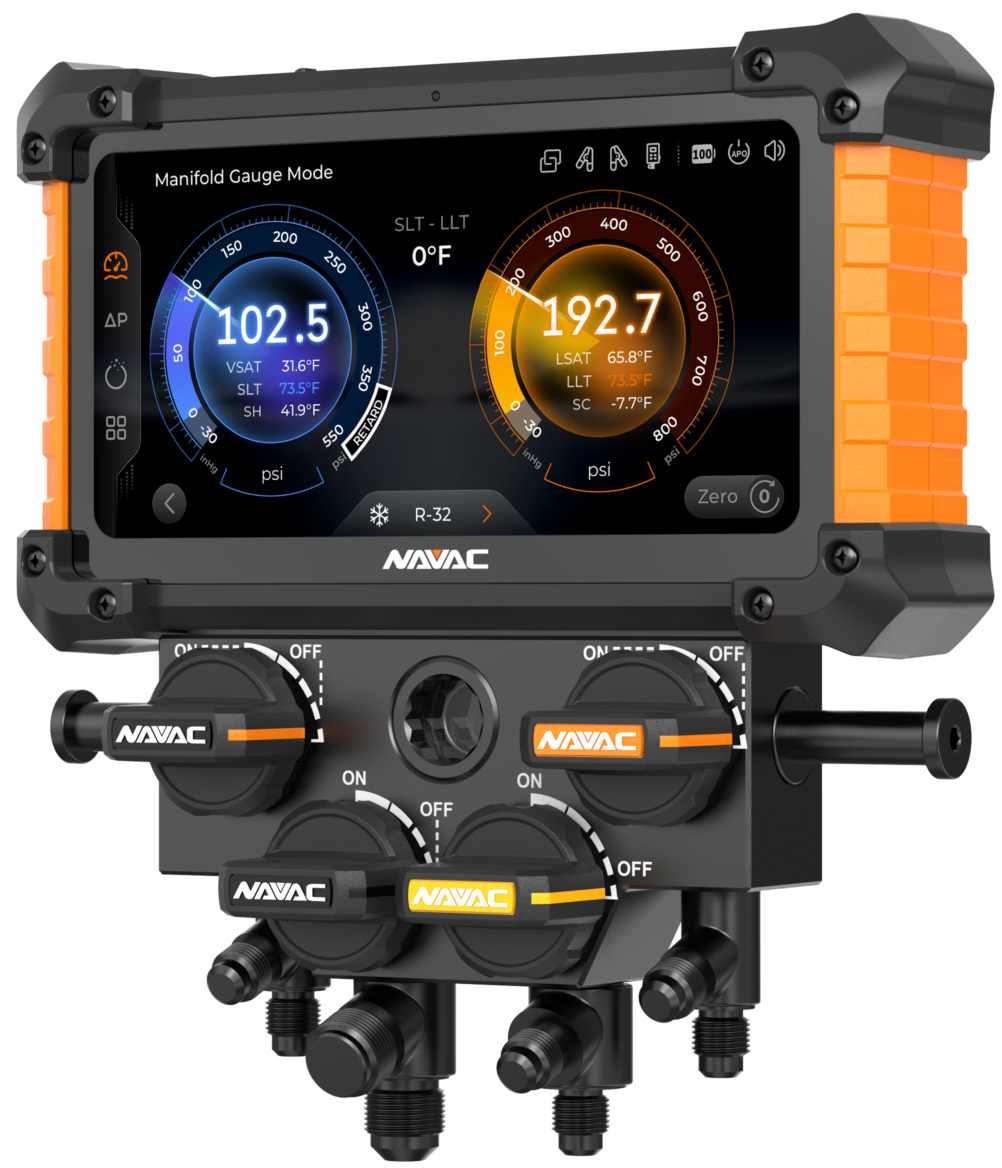

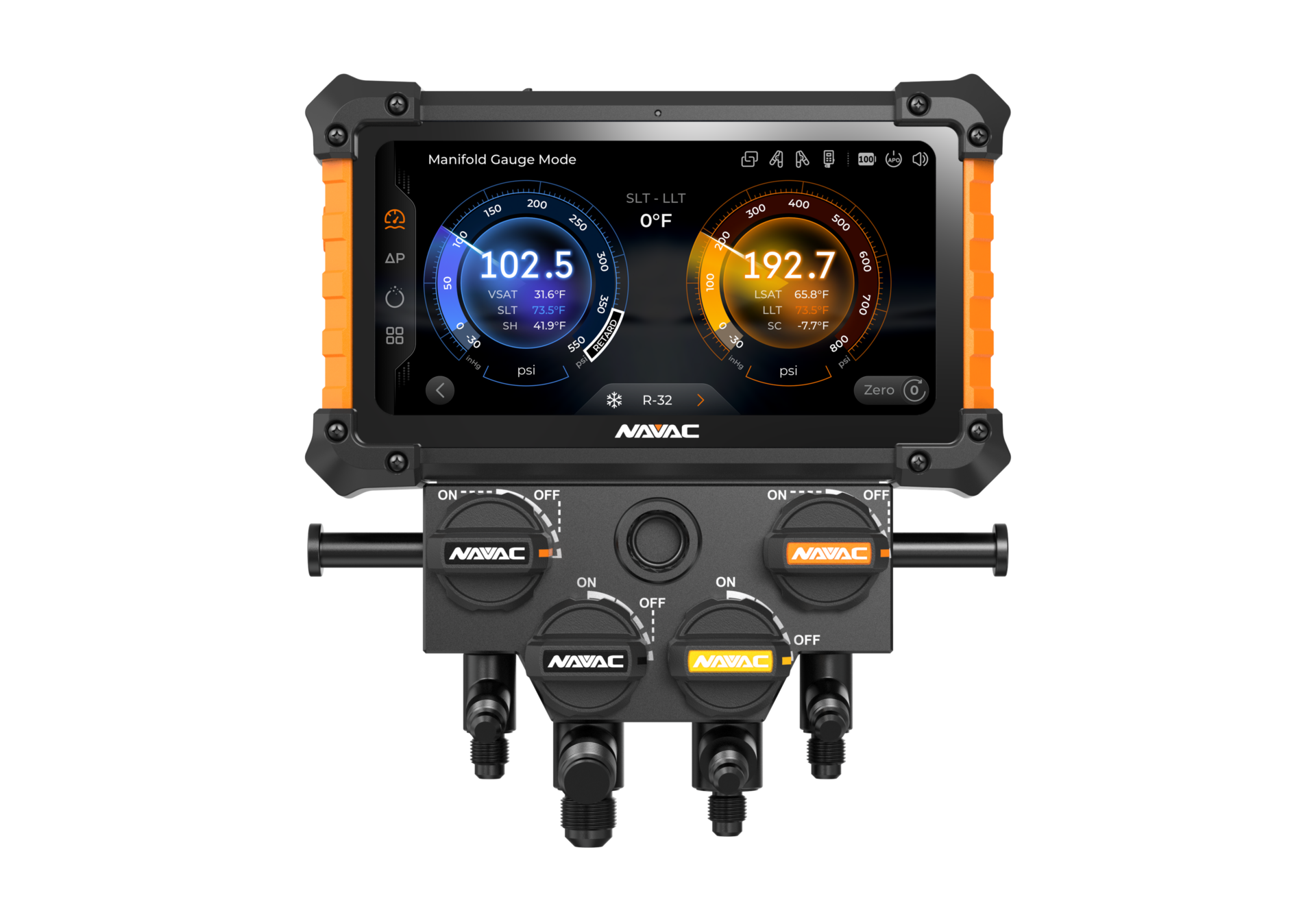

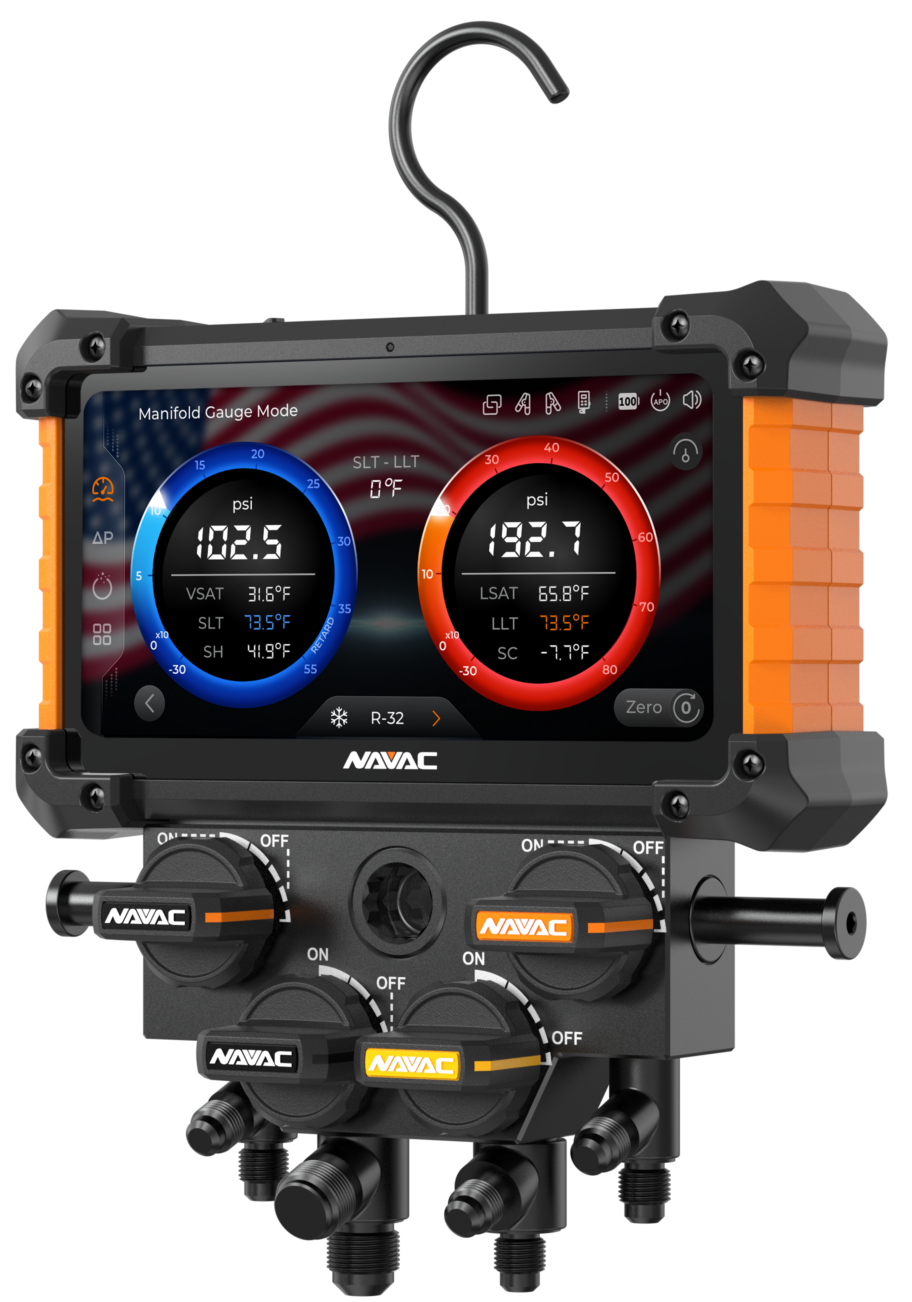

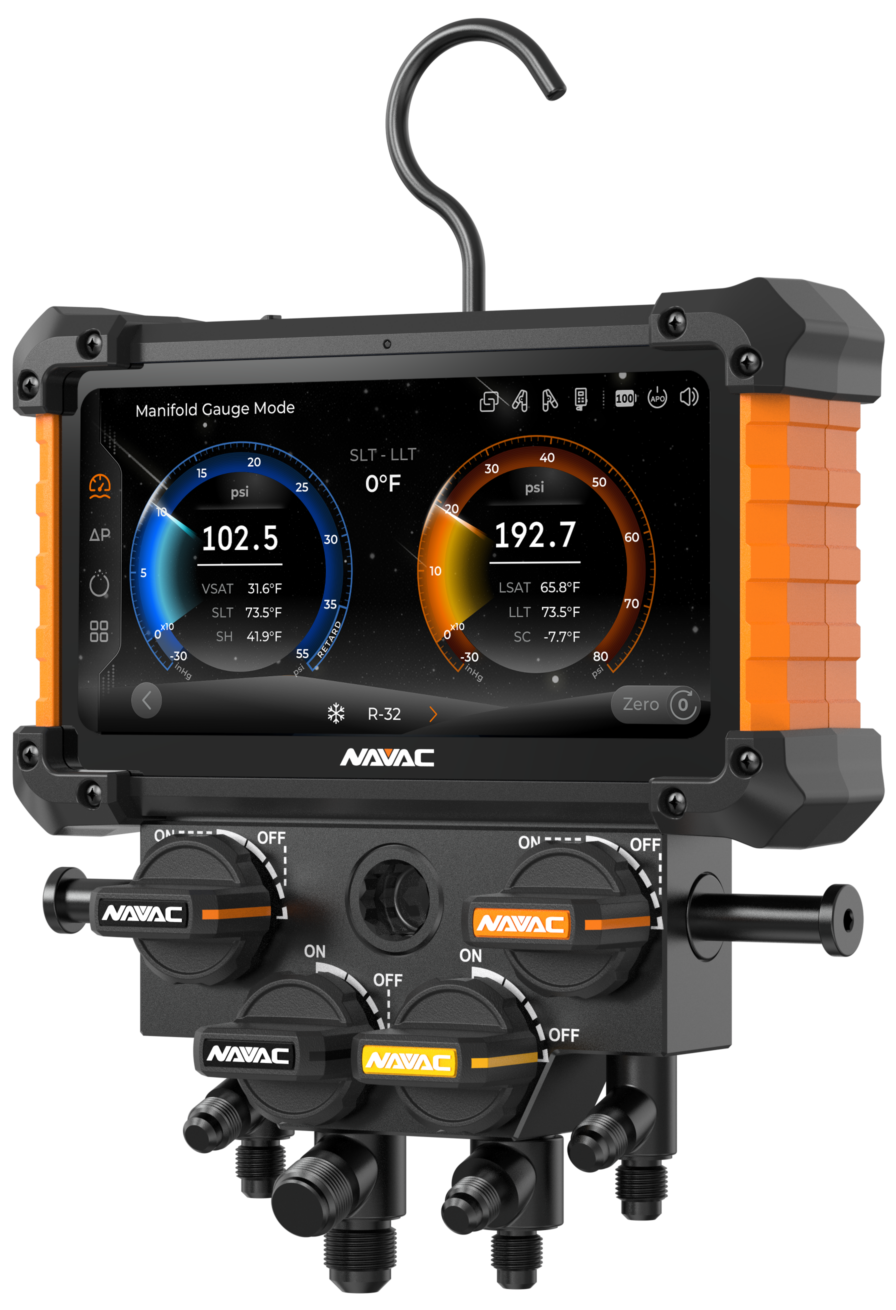

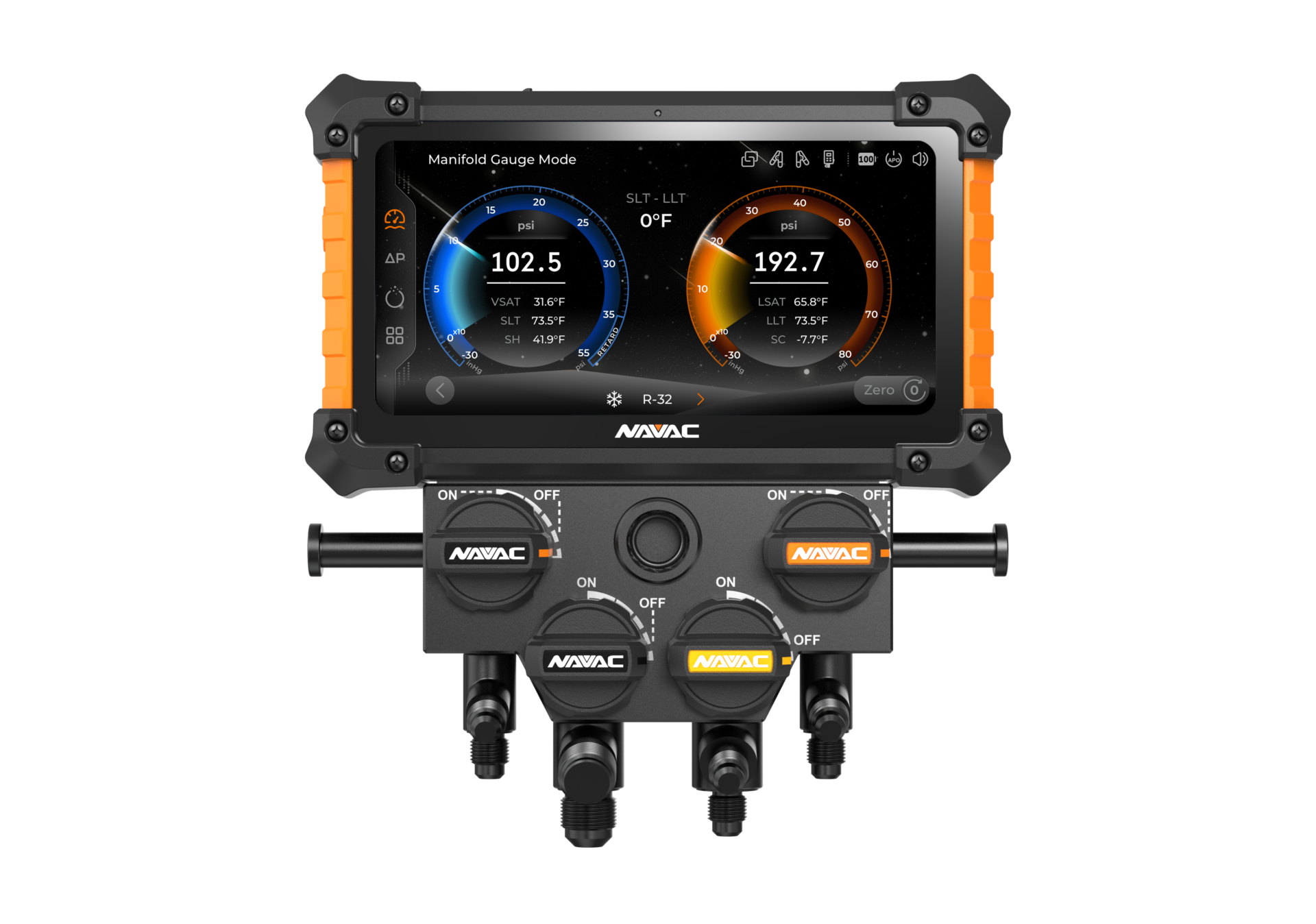

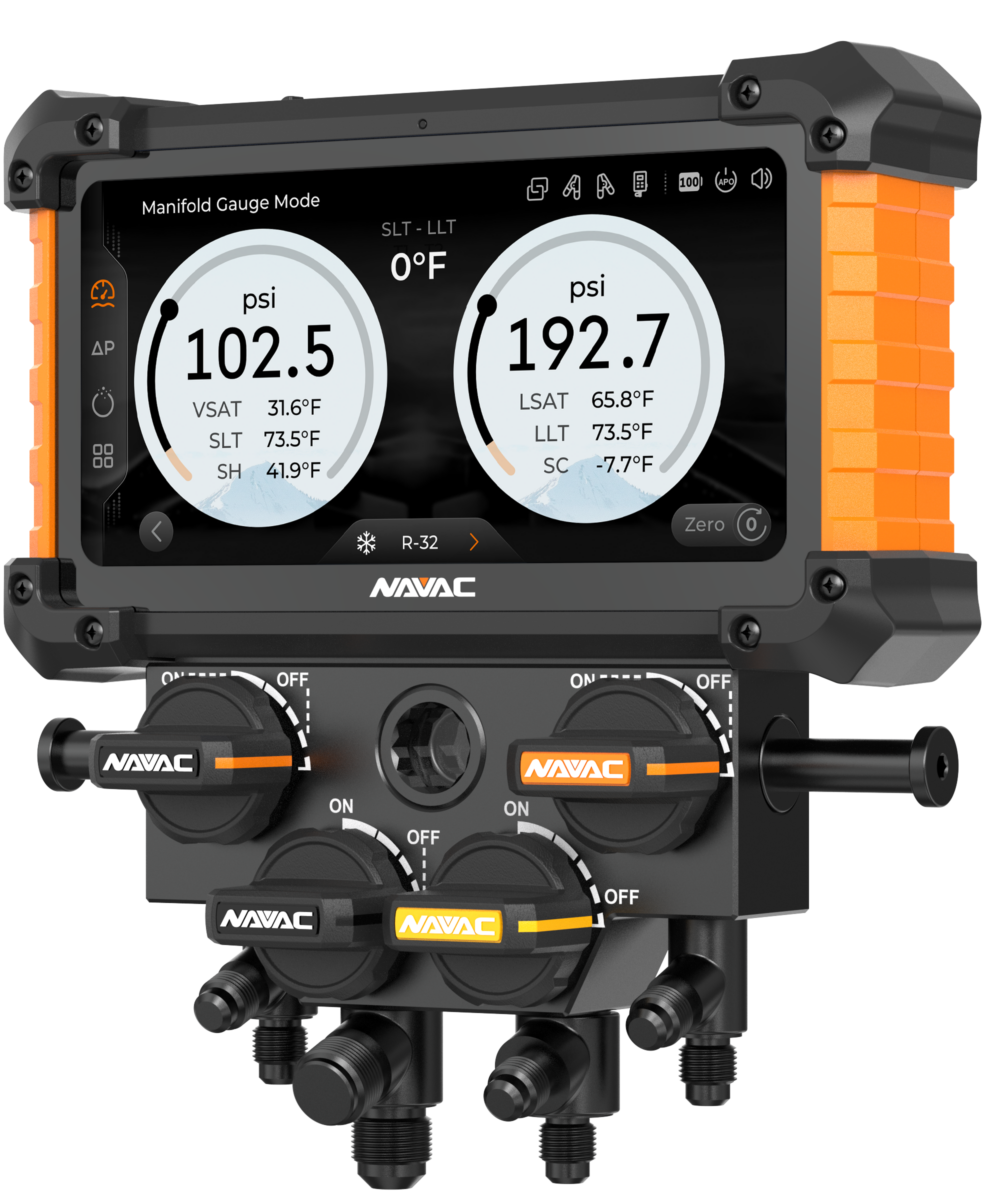

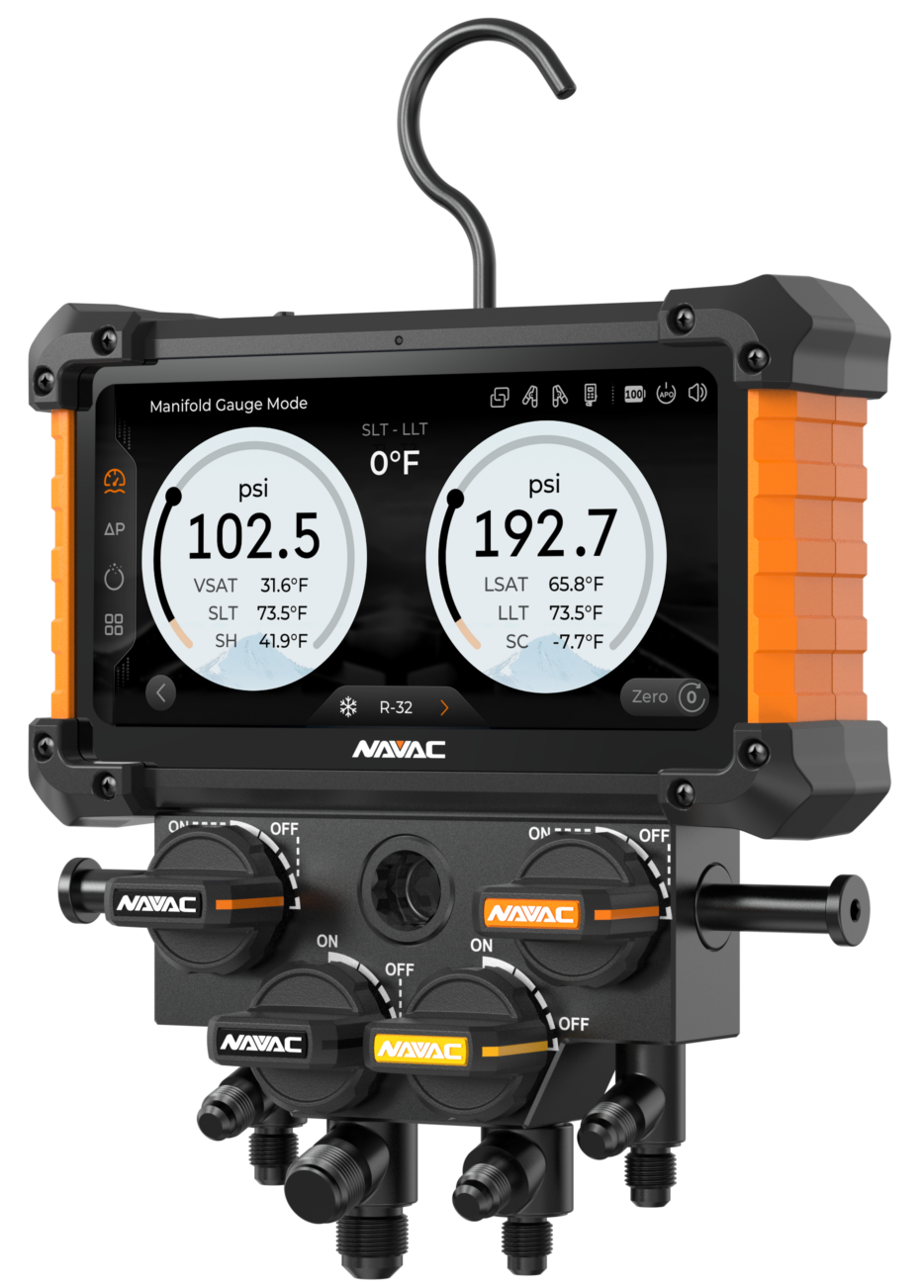

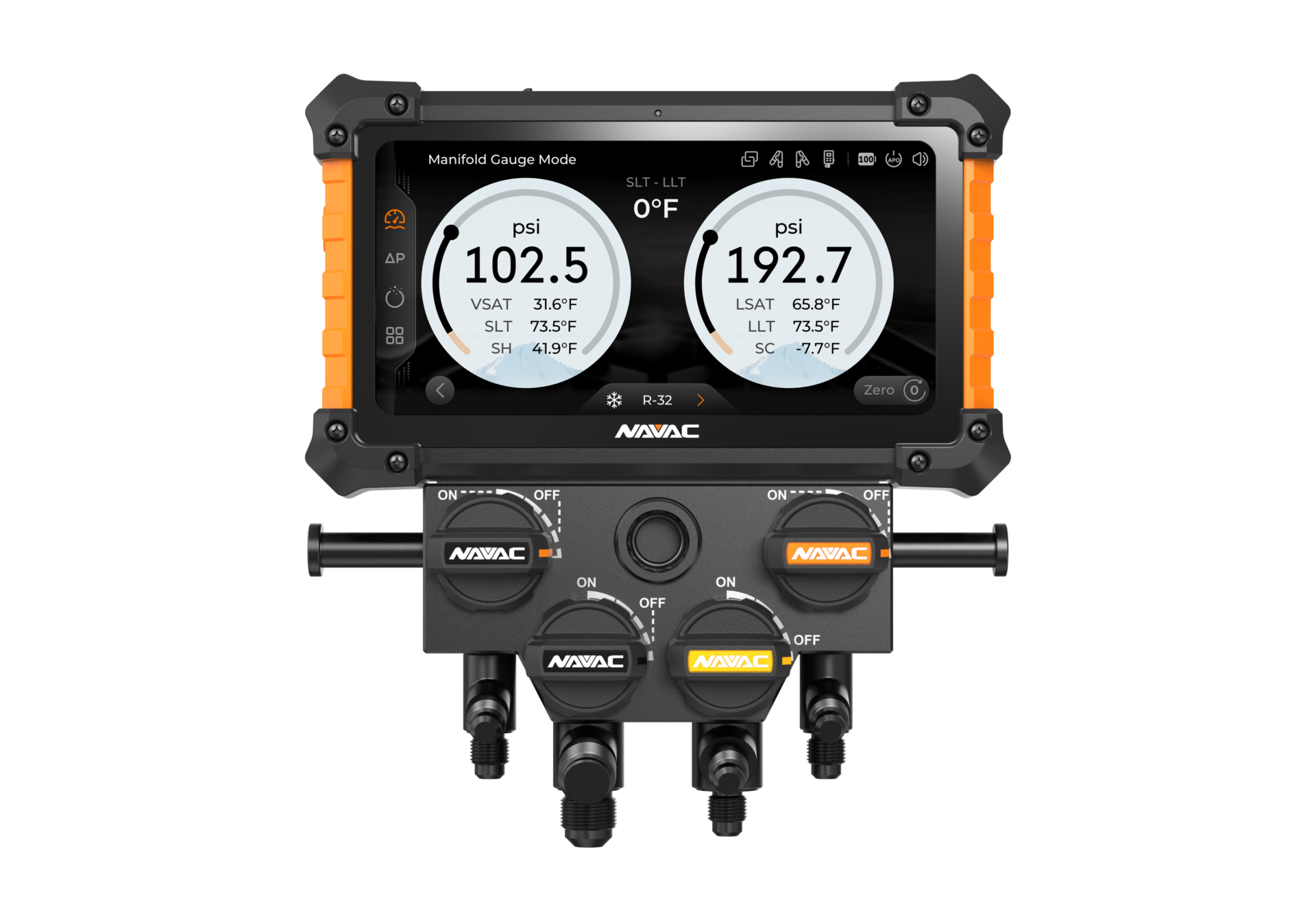

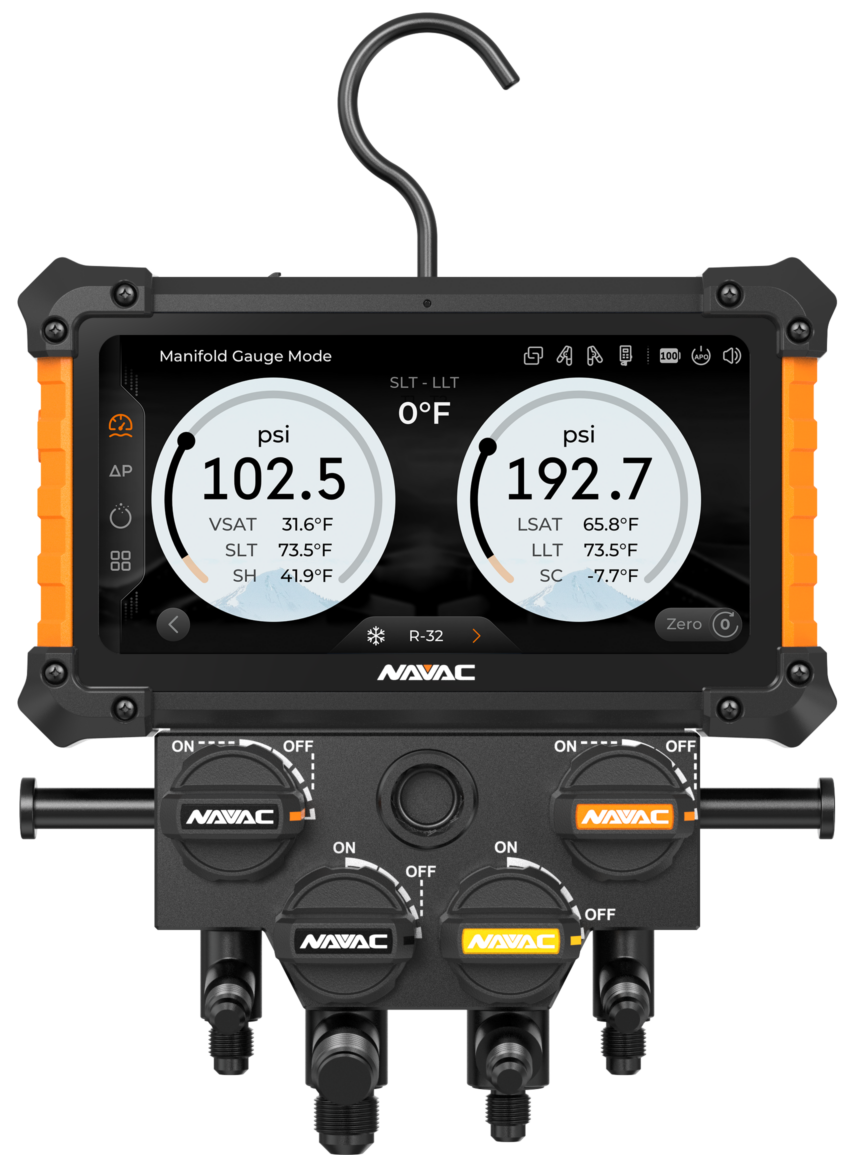

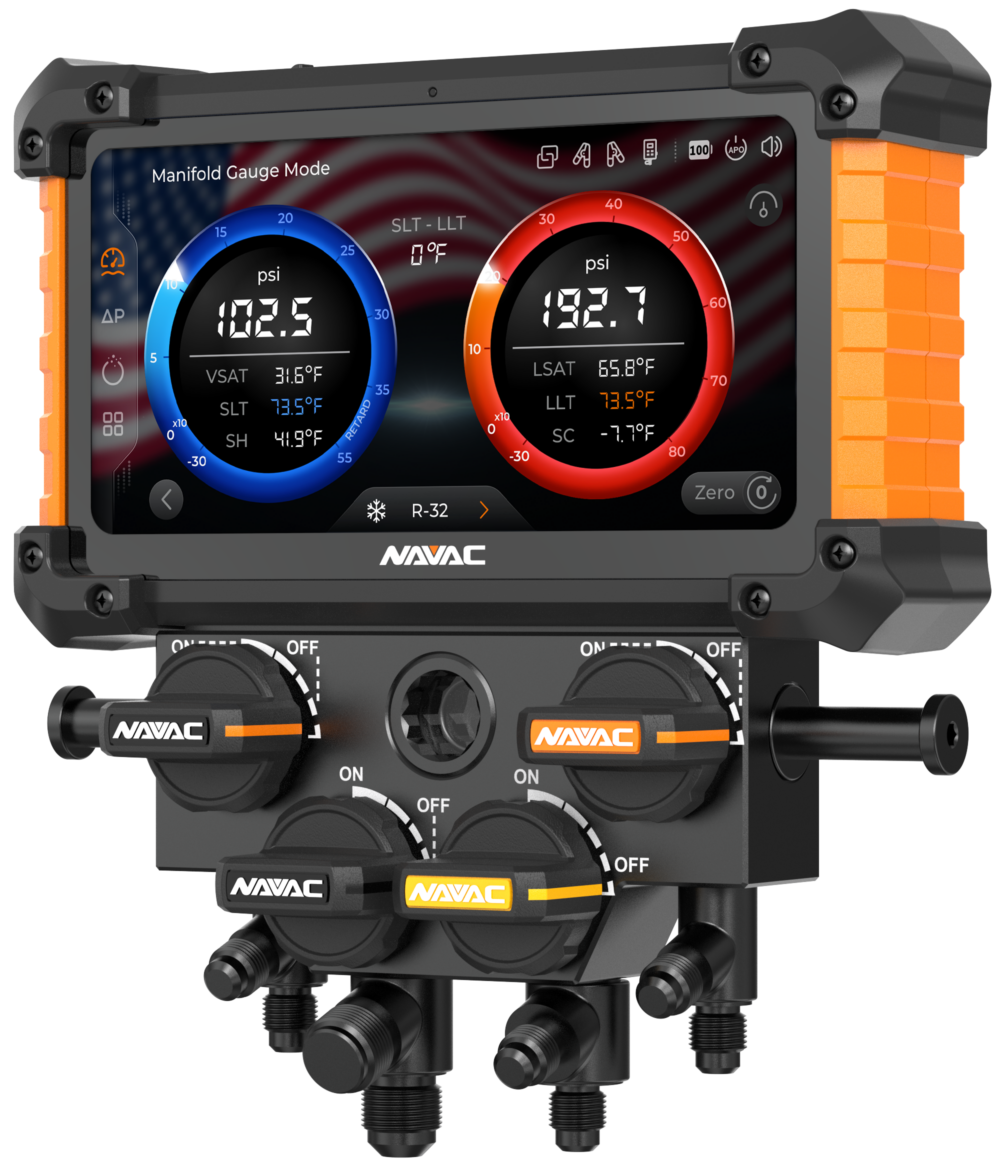

What truly sets NEXUS 2 apart is its user-first design. Visualization isn’t just about looks — it’s about streamlining workflows. Inspired by aviation-grade UI principles, the HD color touchscreen and enhanced interface make all three key functions more intuitive, visual, and precise: Manifold Gauge Mode, Leak Test Mode, and Evacuation Mode with decay test. And because usability goes hand in hand with personalization, NEXUS 2 offers four themes, including Daylight Mode for clear visibility under direct sun, and expect even more options with upcoming firmware updates.
This isn’t just a gauge that gets the job done. It’s a gauge that makes the job better.
| Specification | Details | |
|---|---|---|
| Refrigerant Type |
R11, R113, R114, R115, R116, R12, R1224yd(Z), R123, R1233zd, R1233zd(E), R1234yf, R1234ze, R1234ze(E), R1234ze(Z), R124, R1243zf, R125, R13, R134a, R1409A, R22, R23, R236fa, R245fa, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R41, R410A, R410B, R411A, R411B, R12A, R413A, R414A, R414B, R415A, R415B, R416A, R417A, R417C, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A, R428A, R434A, R437A, R438A, R447A, R447B, R448A, R449A, R450A, R451A, R451B, R452A, R452B, R452C, R453A, R454A, R454B, R454C, R455A, R456A, R458A, R459A, R459B, R460A, R460B, R500, R501, R502, R503, R507A, R508B, R513A, R600, R600a, R601, R601A Firmware can be updated at NAVAC website or with MyNAVAC™ App |
|
| Screen Configuration | IPS touch screen, 1024 x 512 pixel | |
| Ports | (3) 1/4" sae | |
| Maximum Manifold Pressure | 1087 psi (7500 kPa) | |
| Bluetooth Range | 260 ft (80m) line of sight | |
| Power Supply | Rechargeable 3000mAh lithium battery, 8~100 hours run time, Type-C charing port | |
| Language | English, Spanish, French | |

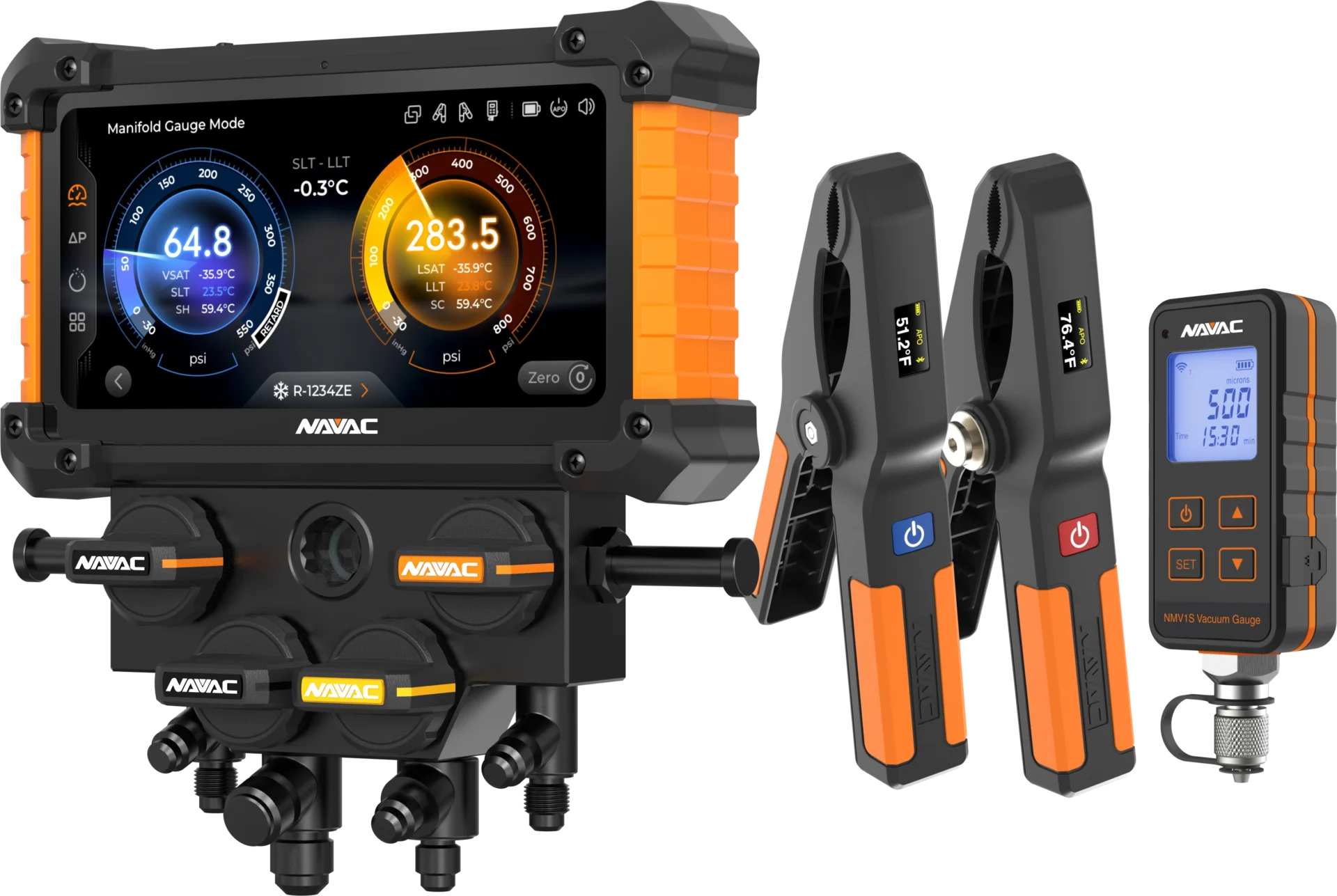

| NX4G (Vacuum Gauge Not Included) | NX4GV (Vacuum Gauge Included) | |

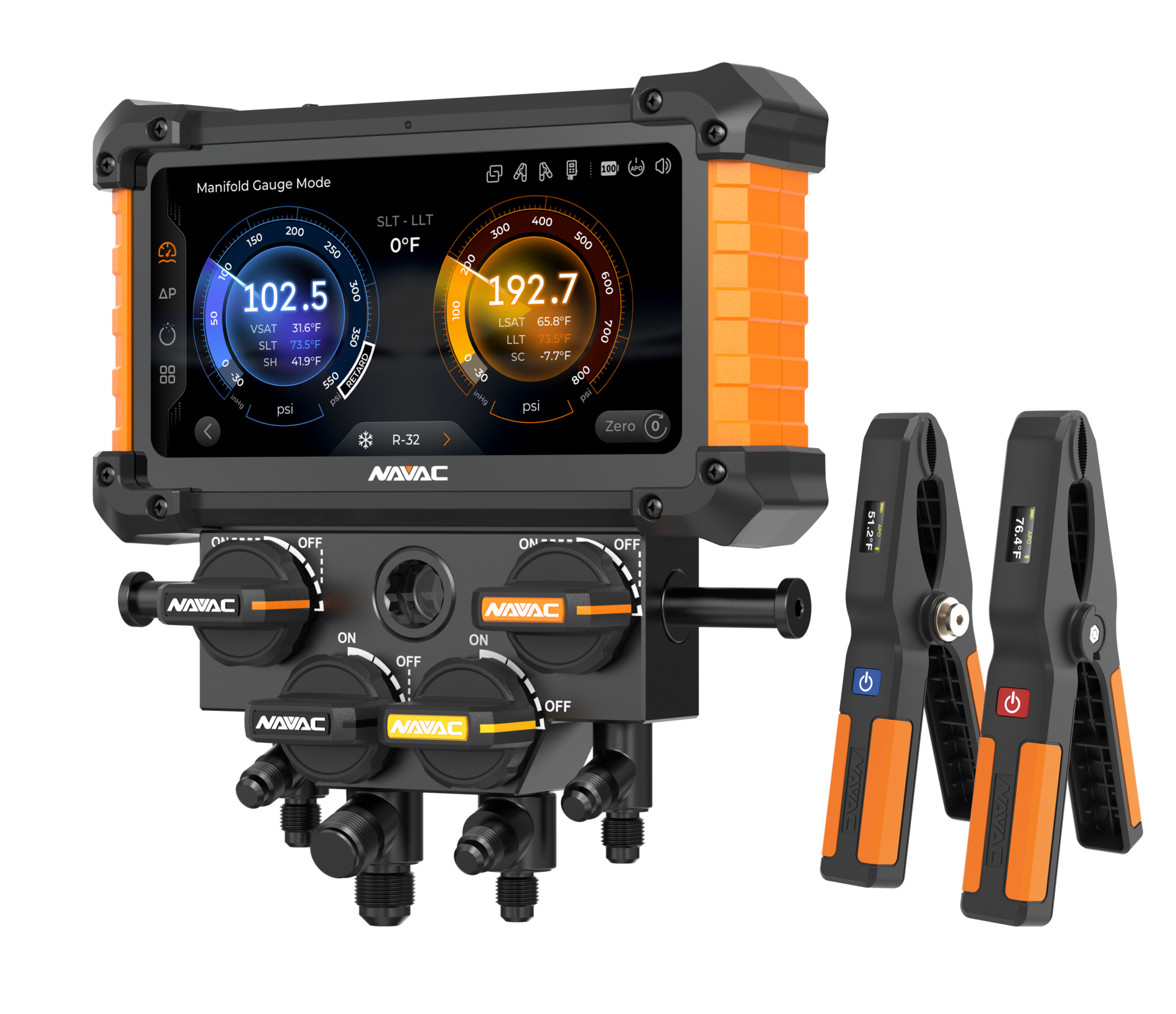

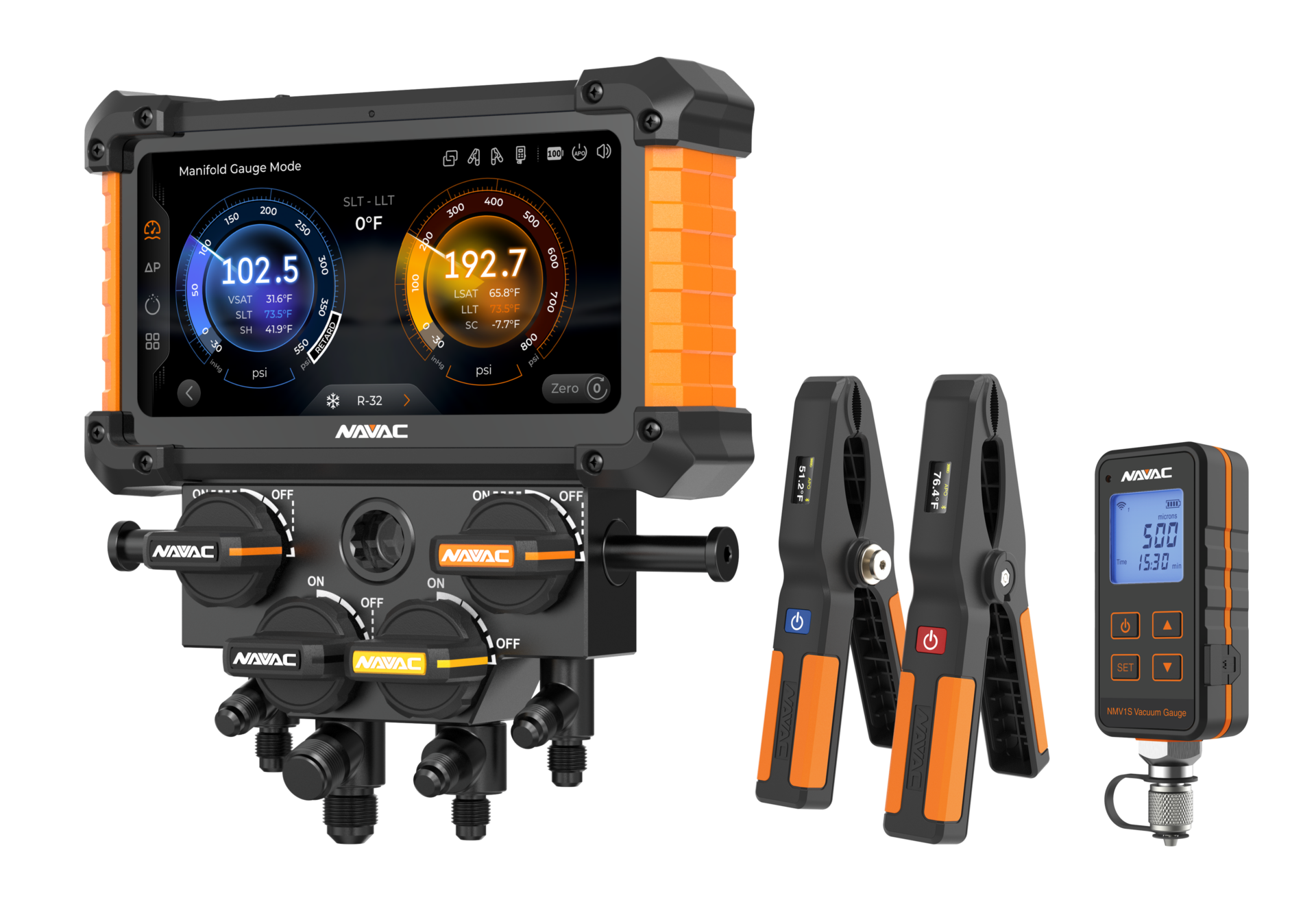

| Accessory | Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Storage Bag | NMV1S Vacuum Gauge in addition to the NX4G Kit |
| Warranty | 2 years | |
