PERFORMANCE • RELIABILITY

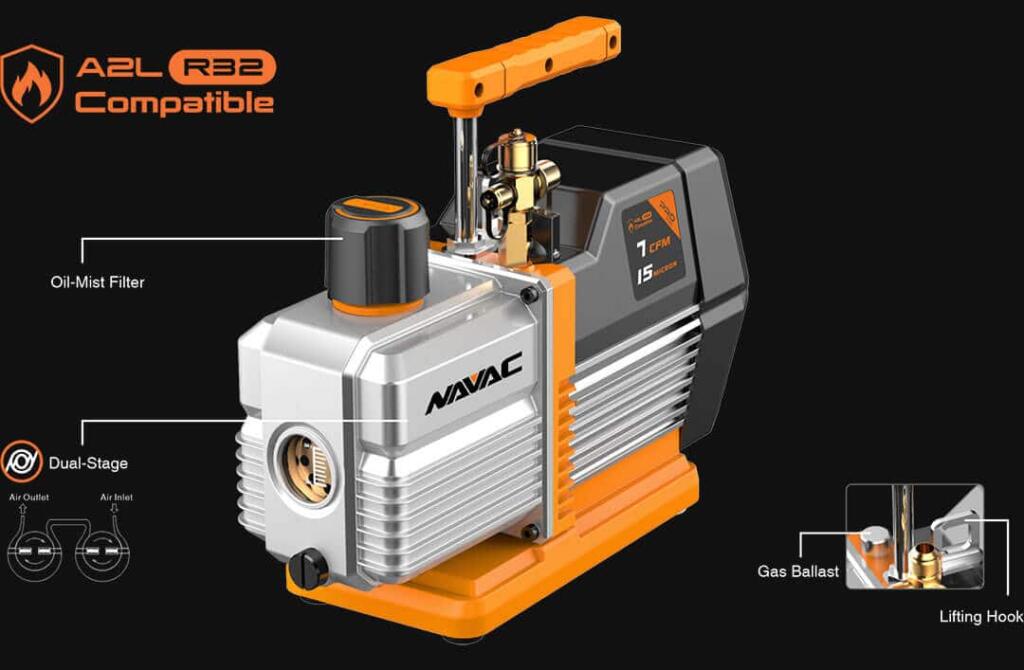

NAVAC NP7DP2 is A2L (R32, R454B) compatible vacuum pump with expanded applications. Its dual-stage design delivers an ultimate vacuum down to 15 microns. Integrated cylinder structure coupled with forced oil circulation assure its high performance and reliability. Built-in hook makes it easy to carry to a high workplace.
Leading Technology, Superior Quality, Best Experience.
Empowering you to work smarter!
| Model | NP7DP2 | |
|---|---|---|
| Power Supply | V/Hz | 115V/60Hz |
| Flow Rate | CFM | 7 |
| RLA | A | 4A |
| Ultimate Vacuum | micron | 15 |
| Pump Design | Dual-Stage, AC Motor | |
| Motor Power | HP | 3/4 |
| Inlet Port | in | 1/4″, 3/8″, 1/2″ Flare |
| Oil Capacity | oz | 15 |
| Dimensions | in | 14″x5″x11.3″ |
| Weight | lbs | 26 |
| Warranty | year | 1 |
Warning: Do not leave pump running unattended in a closed environment without adequate ventilation.
